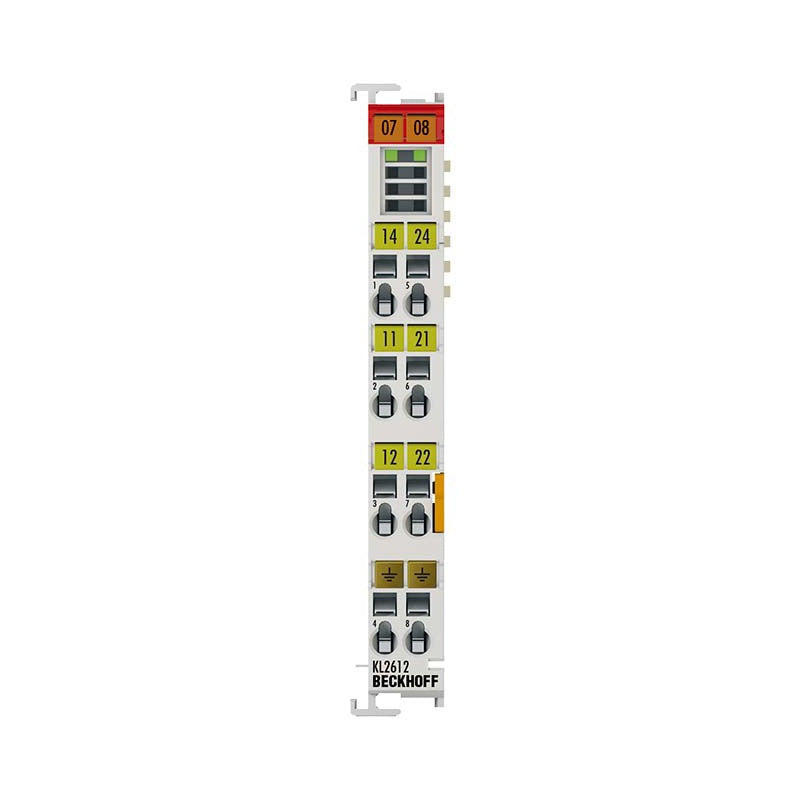

Beckhoff KL2612 | Beckhoff Bus Terminals

KL2612 | Bus Terminal, 2-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

The KL2612 output terminal switches two relays, each having one changeover contact, under control of the automation device. It has potential-free contacts...

Technical Specifications

KL2612 Number of outputs 2 x change-over Nominal voltage 125 V AC/30 V DC Load type ohmic Max. output current 2 A per channel Switching current 0.5 A AC/2 A DC (ohmic) Ohmic switching current 0.5 A AC/2 A DC Inductive switching current no data Minimum permitted load 10 µA at 10 mV Lamp test, electronic ballast max. 2 A starting current Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts – Current consumption K-bus typ. 60 mA Bit width in the process image 2 outputs Operating cycles mech. (min.) 1 x 10 8 Operating cycles electr. (min.) 2 x 10 5 (1 A/30 V DC) Configuration no address or configuration setting Special features signal relay Weight approx. 80 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 6

Availability: regular delivery
