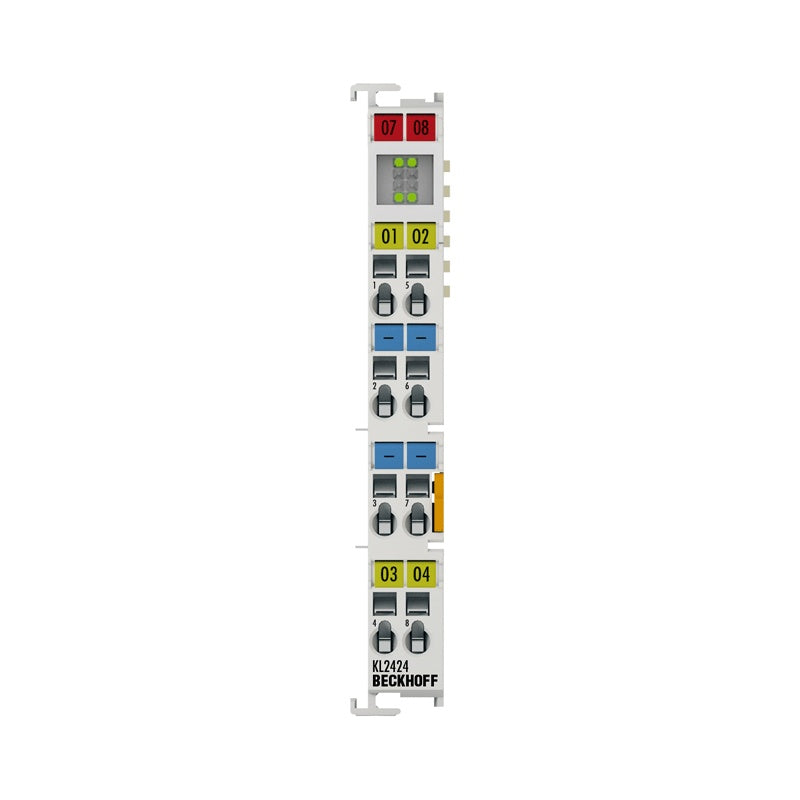

Beckhoff KL2424 | Beckhoff Bus Terminals

KL2424 | Bus Terminal, 4-channel digital output, 24 V DC, 2 A

The KL2424 digital output terminal connects the binary 24 V control signals electrically isolated with the actuators. The Bus Terminal contains four channels...

Technical Specifications

KL2424 Connection technology 2-wire Number of outputs 4 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Max. output current 2.0 A (short-circuit proof) per channel Short-circuit current Switching-off energy Reverse polarity protection yes Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 30 mA + load Current consumption K-bus typ. 9 mA Bit width in the process image 4 outputs Configuration no address or configuration setting Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marki

Availability: regular delivery
