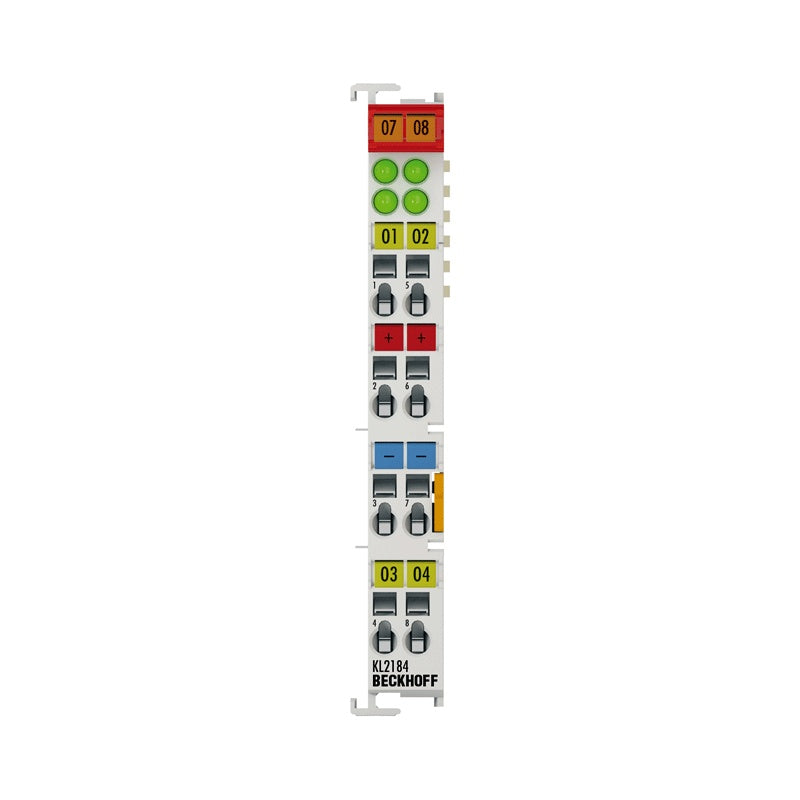

Beckhoff KL2184 | Beckhoff Bus Terminals

KL2184 | Bus Terminal, 4-channel digital output, 24 V DC, 0.5 A, ground switching

The KL2184 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical...

Technical Specifications

KL2184 Connection technology 2-/3-wire Number of outputs 4 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Max. output current 0.5 A (short-circuit proof) per channel Short-circuit current Switching-off energy Reverse polarity protection yes Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 30 mA + load Current consumption K-bus typ. 9 mA Bit width in the process image 4 outputs Configuration no address or configuration setting Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking AT

Availability: regular delivery
