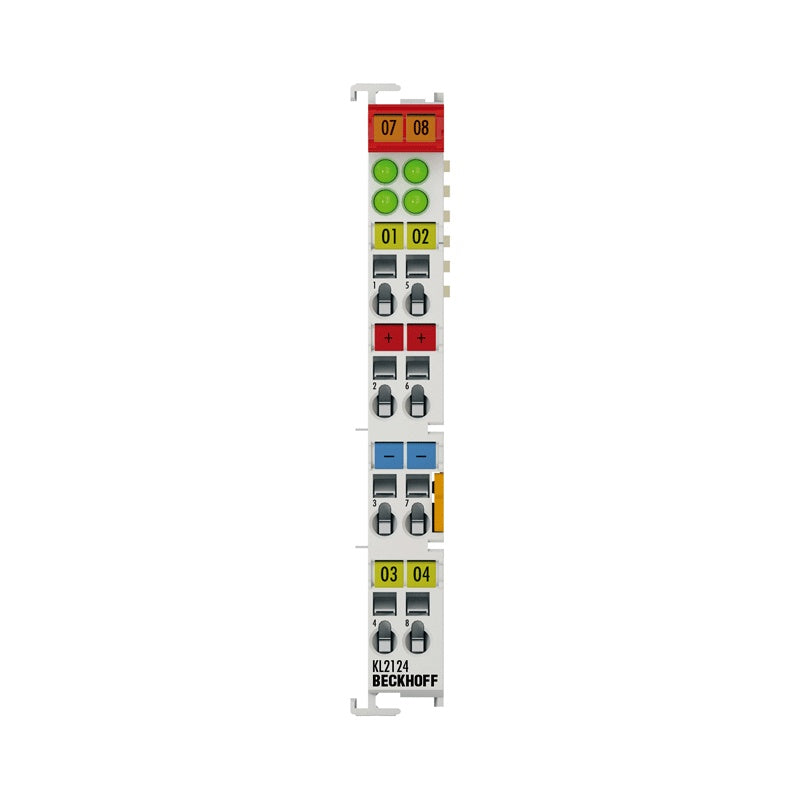

Beckhoff KL2124 | Beckhoff Bus Terminals

KL2124 | Bus Terminal, 4-channel digital output, 5 V DC, 20 mA

The KL2124 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical...

Technical Specifications

KL2124 Connection technology 2-/3-wire Number of outputs 4 Nominal voltage 5 V DC Load type ohmic, inductive, lamp load Max. output current ±20 mA (short-circuit proof) per channel, 8 mA signal current Short-circuit current – Switching-off energy – Reverse polarity protection yes Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 16 mA + load Current consumption K-bus typ. 14 mA Bit width in the process image 4 outputs Configuration no address or configuration setting Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx

Availability: regular delivery
