Beckhoff KL2022 | Beckhoff Bus Terminals

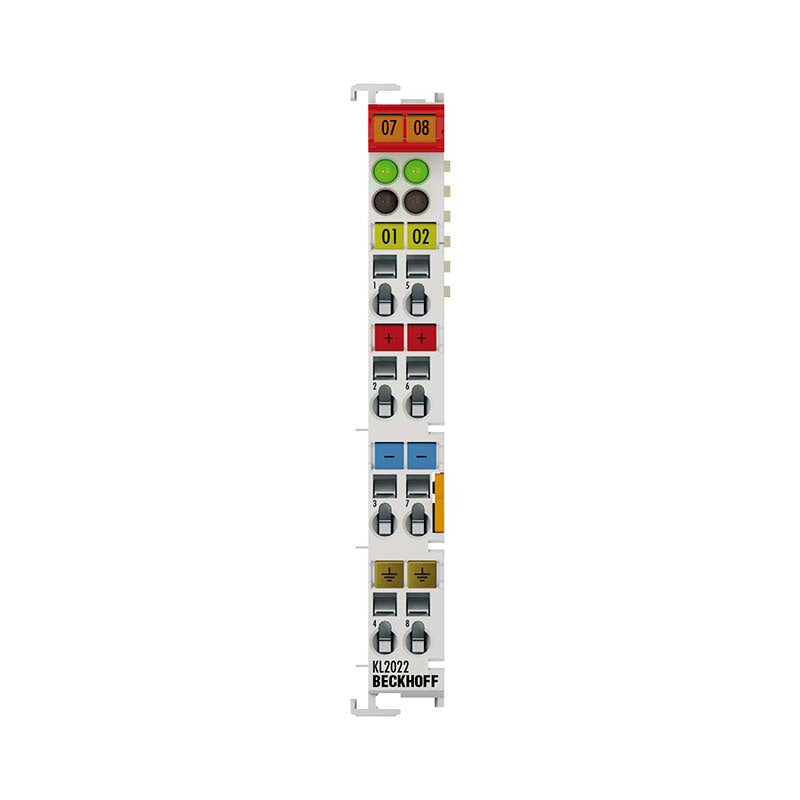

KL2022 | Bus Terminal, 2-channel digital output, 24 V DC, 2 A

The KL2022 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical...

Technical Specifications

KL2022 Connection technology 4-wire Number of outputs 2 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Max. output current 2.0 A (short-circuit proof) per channel Short-circuit current Switching-off energy Reverse polarity protection – Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 20 mA + load Current consumption K-bus typ. 5 mA Bit width in the process image 2 outputs Configuration no address or configuration setting Weight approx. 55 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking AT

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
