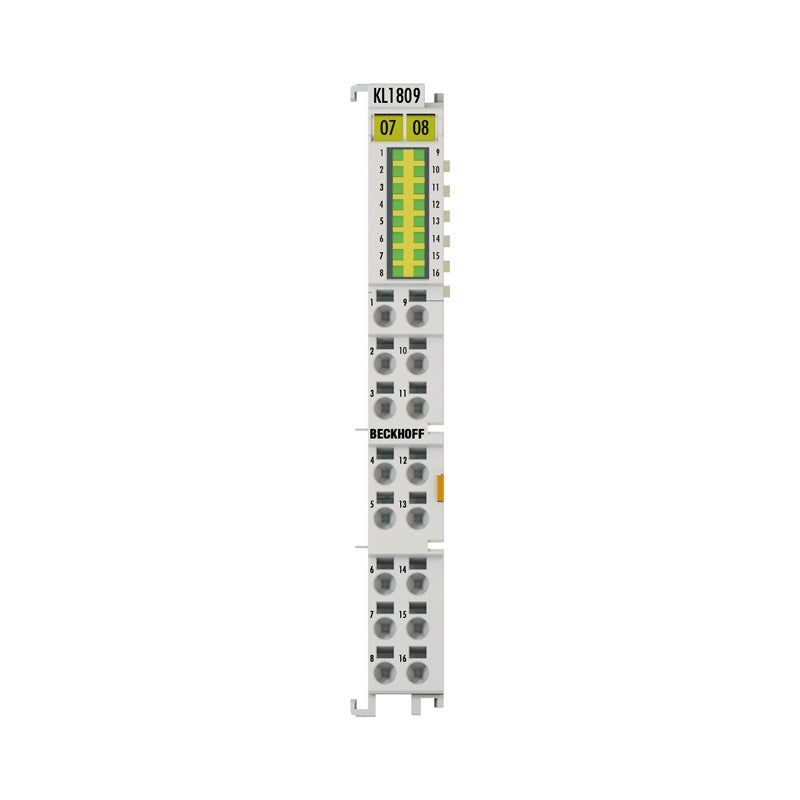

KL1809 | Bus Terminal, 16-channel digital input, 24 V DC, 3 ms

The KL1809 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form...

Technical Specifications

KL1809 Connection technology 1-wire Specification EN 61131-2, type 1/3 Number of inputs 16 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 1/3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input filter typ. 3 ms Input current typ. 3 mA (EN 61131-2, type 3) Current consumption K-bus typ. 20 mA Current consumption power contacts typ. 4 mA + load Electrical isolation 500 V (K-bus/field potential) Bit width in the process image 16 inputs Configuration no address or configuration setting Weight approx. 60 g Storage temperature -40…+85°C Operating temperature -25…+60°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable (see documentation) Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking A
