Beckhoff KL1501 | Beckhoff Bus Terminals

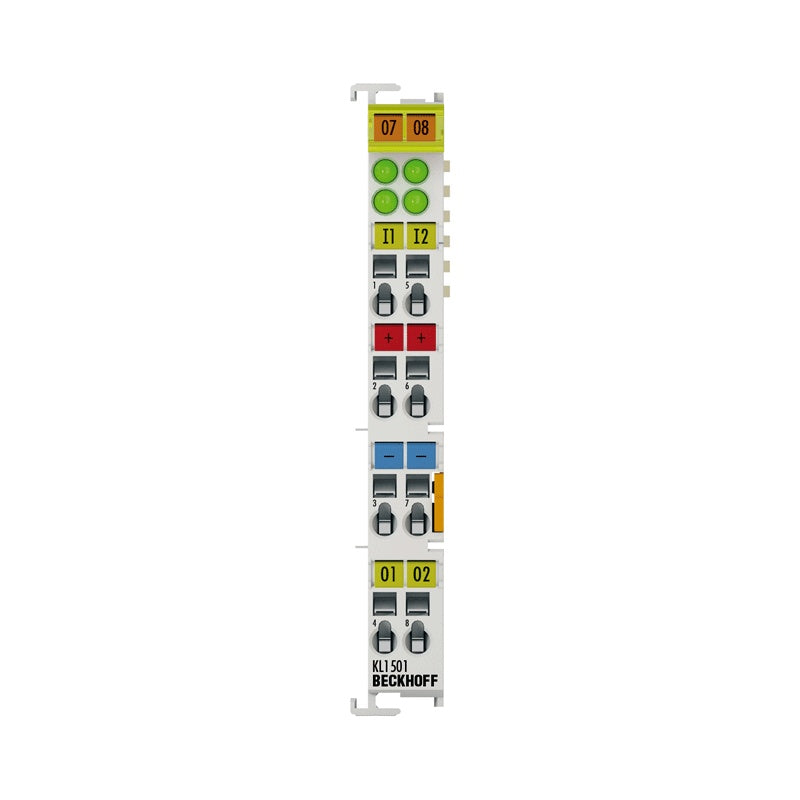

KL1501 | Bus Terminal, 1-channel digital input, counter, 24 V DC, 100 kHz

The digital input terminal KL1501 is an up/down counter and transports the counter value electrically isolated to the higher-level automation device. When...

Technical Specifications

KL1501 Connection technology 1 x up/down counter, 2 x up or down counter Specification EN 61131-2, type 1, “0”: 15 V DC, typ. 5 mA Number of counters 1 or 2 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 1) Signal voltage “1” 15…30 V (EN 61131-2, type 1) Counting frequency max. 100 kHz (2 kHz for switching up/down) Counter depth 32 bit Input current typ. 5 mA (EN 61131-2, type 1) Max. output current 24 V/0.5 A (short-circuit proof) per channel Current consumption K-bus typ. 50 mA Current consumption power contacts load only Electrical isolation 500 V (K-bus/field potential) Bit width in the process image 40 inputs/outputs: 32 bit data, 8 bit control/status Configuration no address setting, configuration via Bus Coupler or controller Special features set counters, switch outputs Weight approx. 50 g Storage temperature -40…+85°C Operating temperature -25…+

Availability: regular delivery
