Beckhoff KL1408 | Beckhoff Bus Terminals

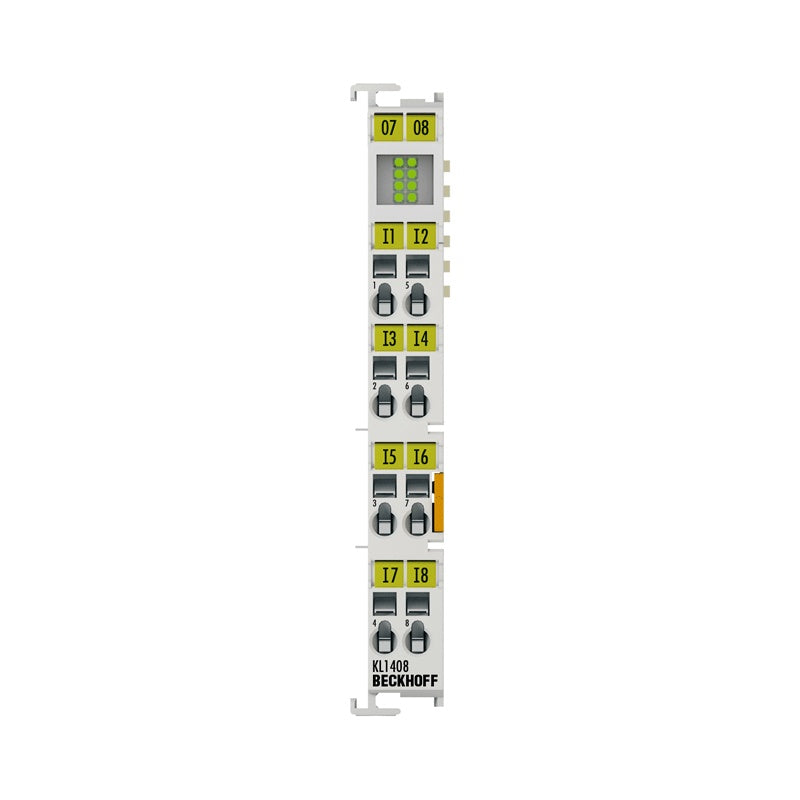

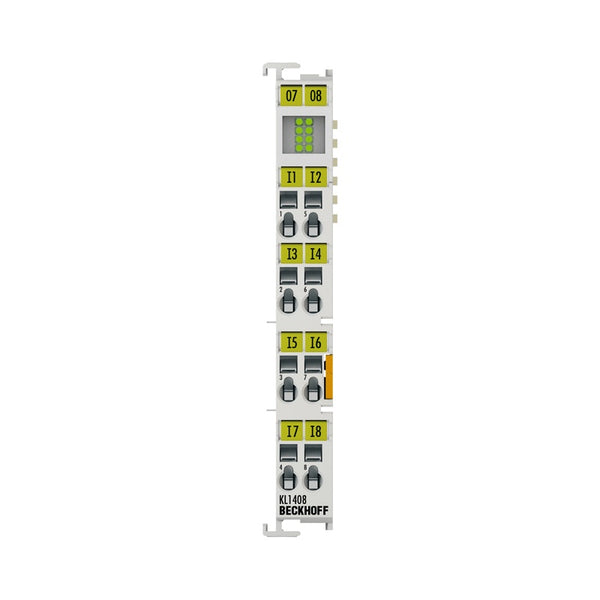

KL1408 | Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection

The KL1408 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form...

Technical Specifications

KL1408 Connection technology 1-wire Specification EN 61131-2, type 1/3 Number of inputs 8 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 1/3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input filter typ. 3 ms Input current typ. 3 mA (EN 61131-2, type 3) Current consumption K-bus typ. 5 mA Current consumption power contacts typ. 2 mA + load Electrical isolation 500 V (K-bus/field potential) Bit width in the process image 8 inputs Configuration no address or configuration setting Weight approx. 55 g Storage temperature -40…+85°C Operating temperature -25…+60°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL,

Availability: regular delivery
