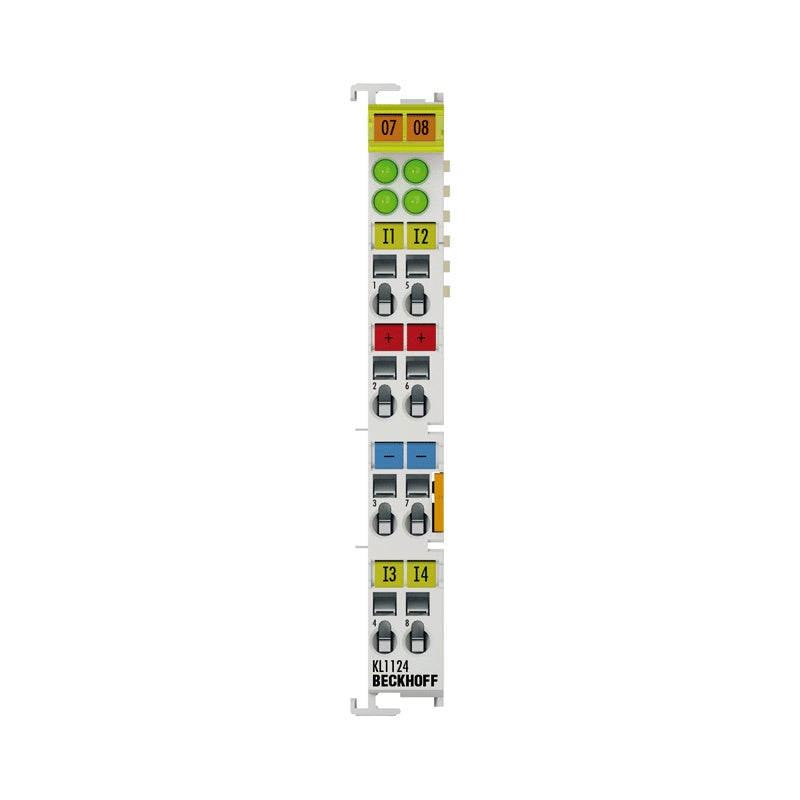

Beckhoff KL1124 | Beckhoff Bus Terminals

KL1124 | Bus Terminal, 4-channel digital input, 5 V DC, 0.2 ms

The KL1124 digital input terminal acquires the binary 5 V DC control signals from the process level and transmits them, in an electrically isolated form...

Technical Specifications

KL1124 Connection technology 2-/3-wire Number of inputs 4 Nominal voltage 5 V DC Signal voltage “0” Signal voltage “1” > 2.4 V Input filter typ. 0.2 ms Input current typ. 50 µA Current consumption K-bus typ. 5 mA Current consumption power contacts typ. 1 mA + load Electrical isolation 500 V (K-bus/field potential) Bit width in the process image 4 inputs Configuration no address or configuration setting Special features supply 5 V DC via power contacts Weight approx. 50 g Storage temperature -25…+85°C Operating temperature 0…55°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC

Availability: regular delivery
