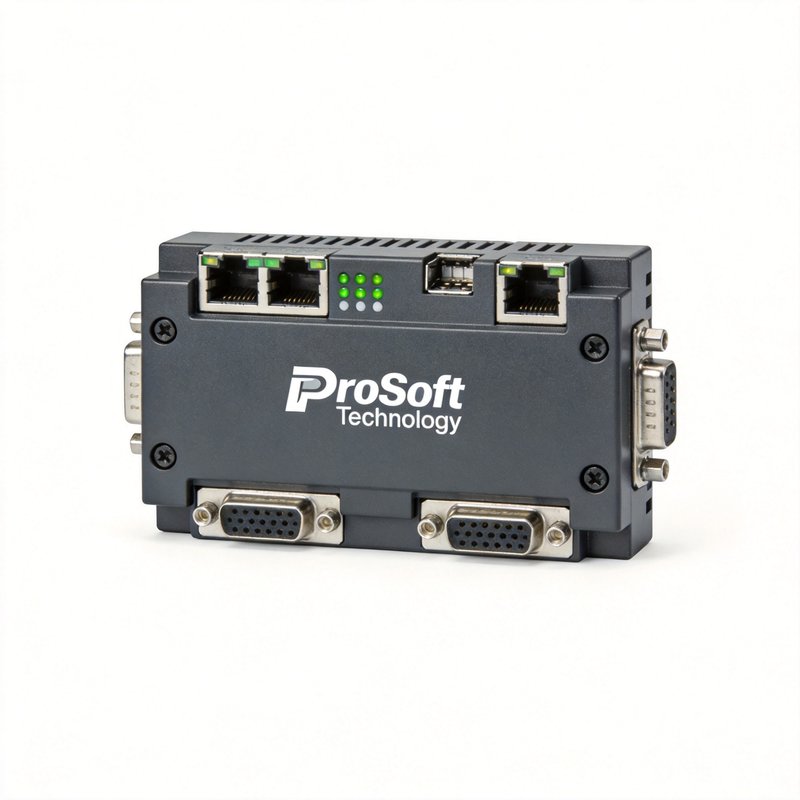

Modbus Serial Module (RS-232) for CompactLogix L1 and Point I/O
RS-232 Modbus Serial module for CompactLogix L1 processors or 1734 Point I/O systems. Configurable as Modbus Master or Slave.
| Platform | CompactLogix L1 / 1734 Point I/O |
| Protocol | Modbus RTU/ASCII (Master/Slave) |
| Serial Interface | RS-232 |
| Baud Rate | 110 to 38.4K baud |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | None, Even, Odd |
| Node Address | 1 to 247 |
| Modbus Commands | Up to 30 commands, up to 36 words per command |
| Data Capacity | Up to 1,000 words |
| Power Supply | 10 to 28.8 VDC |
| Pointbus Current | 75 mA @ 5 VDC |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Shock | 30g (operational), 50g (non-operational) |
| Vibration | 5g @ 10 to 500 Hz |
| Dimensions | 2.21 x 0.47 x 2.97 in (56 x 12 x 75.5 mm) |
| LED Indicators | Module status, Network status, TXD, RXD |
| ESD Immunity | 6kV contact, 8kV air discharges |
