Schneider Electric HMISCU6A5 | Industrial Automation Component
Schneider Electric HMISCU6A5 | Industrial Automation Component

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric HMISCU6A5 | Industrial Automation Component

SKU: HMISCU6A5
(3)
$400.34
-13% $460.39 $400.34
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

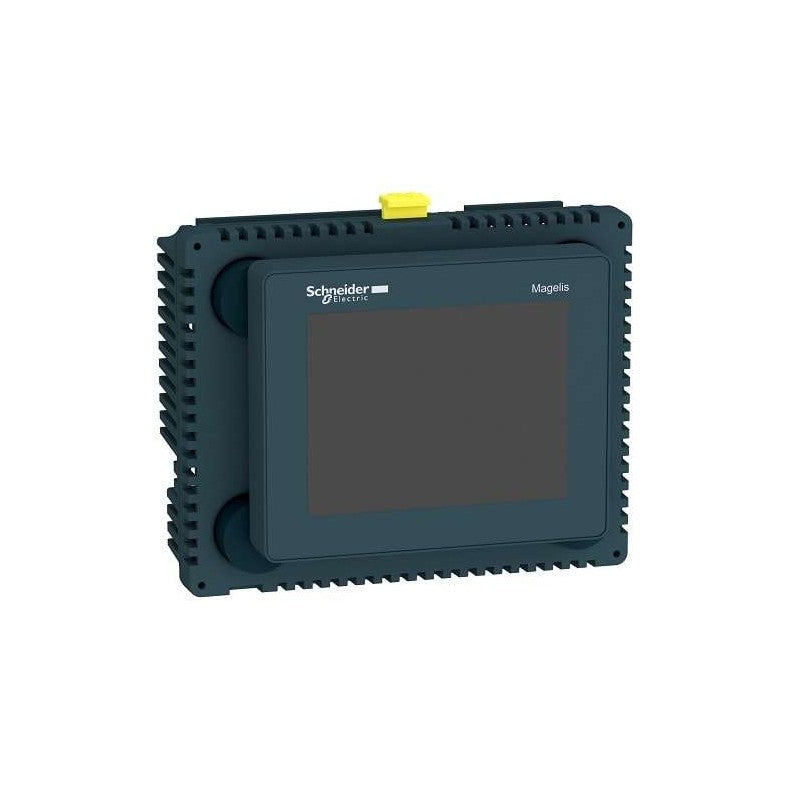

HMISCU6A5 Schneider Electric - Magelis SCU HMI Controller - 3.5 inch with I/O. Small touch HMI controller from the Magelis SCU series with 3.5 inch color TFT LCD display, 16 digital inputs (2 fast), and 10 digital outputs (2 fast + 8 relay). Combines HMI display and PLC functionality in a single unit with CANopen communication. Programmed via SoMachine software for simplified machine control.

  • Brand: Schneider Electric
  • Category: HMI Controller
  • Series: Magelis SCU / Harmony SCU
  • Product Type: HMI Controller with I/O
  • Display Size: 3.5 inch
  • Display Type: QVGA TFT Color LCD
  • Resolution: 320 x 240 pixels
  • Touch Panel: Analog resistive
  • Processor: RISC, 333 MHz
  • Supply Voltage: 24 V DC (20.4-28.8 V)
  • Power Consumption: ≤9 W
  • Digital Inputs: 16 (2 fast + 14 standard)
  • Digital Outputs: 10 (2 fast transistor + 8 relay)
  • Fast Output Current: 300 mA (normal mode)
  • Relay Output Current: 2 A
  • Max Output Frequency: 100 kHz (PTO mode), 1 kHz (PWM mode)
  • Communication Ports: 1x Ethernet TCP/IP, 1x COM1 RS-232C/RS-485, 1x CANopen, 1x USB Type A, 1x USB Mini-B
  • IP Rating: IP65 (front) / IP20 (rear)
  • Operating Temperature: 0 to 50°C
  • Dimensions (W x H x D): 128 x 74.95 x 102 mm
  • Weight: 0.496 kg
  • Software: SoMachine
  • Certifications: cULus, CSA, CE, C-Tick, KCC, GOST, Class I Division 2

Ideal for compact machines, handling systems, food and beverage machines, and pharmaceutical industry applications requiring integrated HMI and PLC control.
