Schneider Electric HMIGTO6315 | Industrial Automation Component

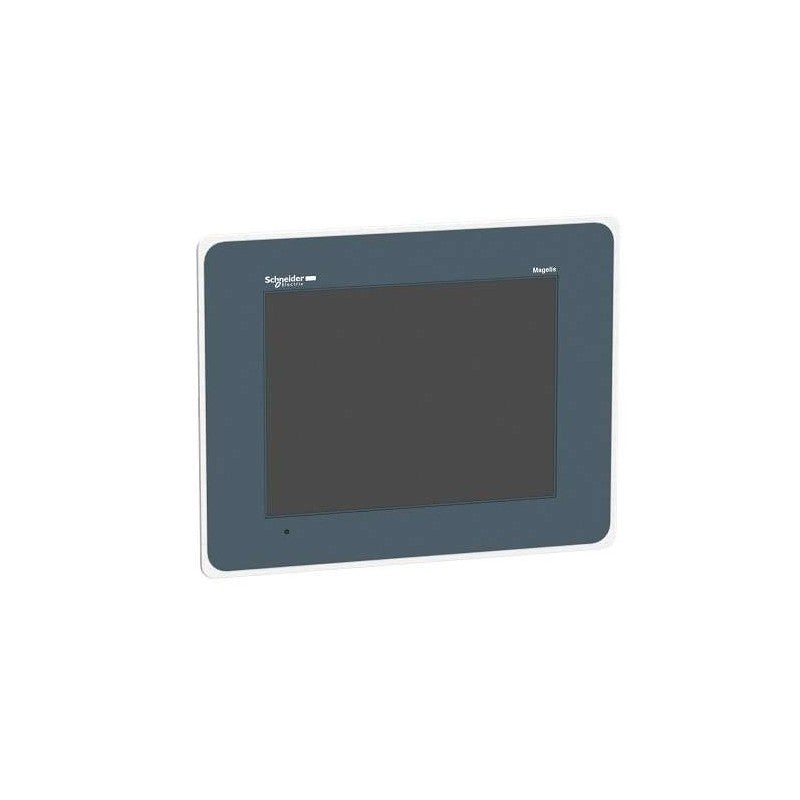

HMIGTO6315 Schneider Electric - HMIGTO6315. Magelis GTO advanced touchscreen HMI panel with 12.1-inch TFT color LCD display at 800x600 SVGA resolution and 65,536 colors. Features 96MB flash EPROM memory, 512KB SRAM with lithium battery backup (100 days autonomy), and stainless steel 304 front bezel. Provides COM1 RS232C, COM2 RS485, Ethernet 10BASE-T/100BASE-TX, and USB 2.0 (Type A and mini-B) ports. SD card slot supporting up to 32GB. Supports Modbus, Siemens Simatic, Allen-Bradley, Omron, and Mitsubishi protocols. NEMA 4X front panel protection with natural convection cooling.

• Brand: Schneider Electric
• Category: HMI Touch Panel
• Product Type: Advanced Touchscreen HMI Panel
• Product Series: Magelis GTO
• Display Type: Backlit Color TFT LCD
• Display Size: 12.1 inch
• Resolution: 800 x 600 (SVGA)
• Display Colors: 65,536
• Touch Technology: Resistive film, 1,000,000 cycles
• Backlight Lifespan: 50,000 hours (white LED) at 25°C
• Memory: 96 MB flash (EPROM), 512 KB SRAM
• Battery: Lithium (100 days autonomy, 10 year life)
• Communication Ports: COM1 (RS232C), COM2 (RS485), Ethernet (RJ45), USB 2.0 (Type A + mini-B)
• Ethernet: 10BASE-T/100BASE-TX
• Supported Protocols: Modbus, Uni-TE, Siemens Simatic, Allen-Bradley, Omron Sysmac, Mitsubishi Melsec
• SD Card: Up to 32 GB (SDHC)
• Software: Vijeo Designer >= V6.1
• Supply Voltage: 24V DC (19.2 to 28.8V)
• Power Consumption: <= 17W (<= 12W without external devices)
• Inrush Current: <= 30A
• Operating Temperature: 0 to 55 °C
• Protection Rating: IP66K (front), IP20 (rear), NEMA 4X (front, indoor)
• Front Material: Stainless Steel 304
• Mounting: Flush mounting (8 nuts or 4 L brackets)
• Dimensions: 359 x 285 x 56 mm
• Weight: 3 kg
• Certifications: CE, cULus, UL 508, KCC, C-Tick
• Standards: EN 61131-2, IEC 61000-6-2
• Green Premium: Yes
• Warranty: 18 months

Provides large-screen human-machine interface with multi-protocol support for complex industrial automation systems, ideal for process visualization, machine control, and data monitoring in manufacturing and infrastructure applications.
