Schneider Electric HMIGT06310 | Industrial Automation Component

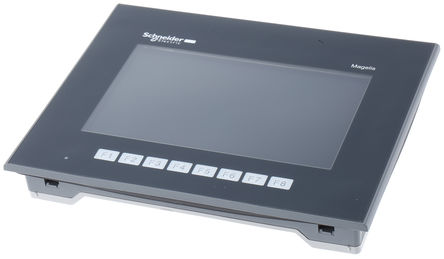

HMIGT06310 Schneider Electric - Harmony GTO Advanced Touchscreen Panel - 12.1 inch. 12.1-inch SVGA TFT color touchscreen HMI panel with 96 MB memory, designed for industrial machine control and monitoring applications with multi-protocol communication support.

• Brand: Schneider Electric
• Category: HMI Touch Panels / Harmony GTO
• Range: Harmony GTO (Magelis GTO)
• Product Type: Advanced touchscreen panel
• Display Size: 12.1 inch
• Display Type: TFT colour LCD
• Display Resolution: 800 x 600 pixels (SVGA)
• Display Colours: 65,536 colours
• Touch Panel: Resistive touchscreen
• Backlight Lifespan: 50,000 hours at 25 degrees C
• Processor: ARM926EJ-S 333 MHz RISC
• Memory: 96 MB Flash EPROM, 512 KB SRAM (battery-backed)
• Data Storage: SD card (up to 32 GB), SDHC (up to 32 GB)
• Supply Voltage: 24 V DC (19.2 to 28.8 V)
• Power Consumption: 17 W (backlight on), 7 W (backlight off)
• Inrush Current: Up to 30 A
• Connections: COM1 (RS232C, SUB-D 9), COM2 (RS485, RJ45), 1x Ethernet RJ45 (10/100BASE-T), 1x USB 2.0 Type A, 1x USB 2.0 Mini B, SD card slot
• Communication Protocols: Modbus, Modbus TCP, Uni-TE, Modbus Plus, FIPWAY, third party (Mitsubishi, Omron, Allen-Bradley, Siemens)
• Mounting: Flush mounting by 4 screw clamps
• IP Protection: IP65 front panel, IP20 rear panel
• NEMA Rating: NEMA 4X (indoor, front panel)
• Operating Temperature: 0 to 55 degrees C (32 to 131 degrees F)
• Storage Temperature: -20 to 60 degrees C (-4 to 140 degrees F)
• Relative Humidity: 10 to 90% non-condensing
• Operating Altitude: Up to 2000 m
• Hazardous Location: Class I Division 2 Groups A, B, C, D
• Standards: UL 508, EN 61131-2, IEC 61000-6-2
• Certifications: CULus, CE, C-Tick, KCC
• Software: Vijeo Designer (>= V6.1)

The HMIGTO6310 advanced touchscreen panel is designed for industrial machine control and monitoring. Ideal for material handling, packaging machinery, textile manufacturing, and automotive sub-assembly lines. Provides clear status displays and operator interaction for Schneider and third-party PLC systems.
