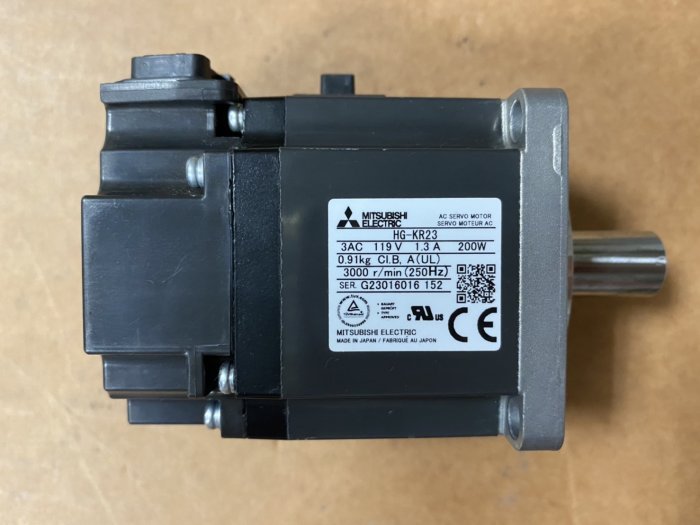

AC Servos-MELSERVO HG-KR23
| Series | MELSERVO-J4 series |
| Power class | 200 V AC |
| Model name | HG-KR23 |
| Compatible servo amplifier | Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers " for compatible servo amplifier. |
| Power supply capacity [kVA] *50 | 0.5 |
| Continuous running duty *1 - Rated output [kW] | 0.2 |
| Continuous running duty *1 - Rated torque [N・m] *2 | 0.64 |
| Maximum torque [N・m] | 2.2 |
| Rated speed [r/min] *1 | 3000 |
| Maximum speed [r/min] *1 | 6000 |
| Permissible instantaneous speed [r/min] | 6900 |
| Power rate at continuous rated torque [kW/s] | 18.3 |
| Rated current [A] | 1.3 |
| Maximum current [A] | 4.6 |
| Moment of inertia J [x 10 -4 kg・m 2 ] | 0.221 |
| Recommended load to motor inertia ratio *3 | 26 times or less |
| Speed・position detector | Absolute/incremental 22-bit encoder (resolution: 4194304 pulses/rev) |
| Type | Permanent magnet synchronous motor |
| Oil seal | None (Servo motors with an oil seal are available. (HG-KR_J)) |
| Thermistor | None |
| Insulation class | 130 (B) |
| Structure | Totally enclosed, natural cooling (IP rating: IP65) *4 |
| Environment *50 - Ambient temperature - Operation | 0 °C to 40 °C (non-freezing) |
| Environment *50 - Ambient temperature - Strage | -15 °C to 70 °C (non-freezing) |
| Environment *50 - Ambient humidity - Operation | 10 %RH to 80 %RH (non-condensing) |
| Environment *50 - Ambient humidity - Strage | 10 %RH to 90 %RH (non-condensing) |
| Environment *50 - Ambience | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Environment *50 - Altitude | 2000 m or less above sea level *5 |
| Environment *50 - Vibration resistance *50 | X: 49 m/s 2 Y: 49 m/s 2 |
| Vibration rank | V10 *50 |
| Satisfied standards | Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations. |
| Permissible load for the shaft *50 - L [mm] | 30 |
| Permissible load for the shaft *50 - Radial [N] | 245 |
| Permissible load for the shaft *50 - Thrust [N] | 98 |
| Mass [kg] | 0.91 |
Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers " for compatible servo amplifier.
