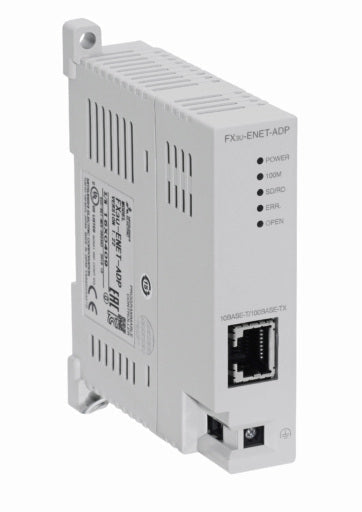

MELSEC-F Series FX3U-ENET-ADP
| Applicable PLC | FX3S, FX3G (Ver. 2.00 or later), FX3U (Ver. 3.10 or later), FX3GC (Ver. 2.00 or later), FX3UC (Ver. 3.10 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U-ENET-ADP with the FX3U/FX3 |
| Mass (weight) | 0.1 kg |
| Transmission specifications - Data transmission speed | 100 Mbps/10 Mbps |
| Transmission specifications - Communication mode | Full-duplex/Half-duplex |
| Transmission specifications - Transmission method | Base band |
| Transmission specifications - Maximum segment length | 100 m |
| Connector | RJ45 |
| Function | ・MELSOFT connections ・Communication Using MC Protocol ・MELSOFT Direct Connection (Simple Connection) ・Find CPU function ・Time setting function *The time setting function (SNTP client) is enabled only after the trigger condition is established. ・Diagnostics function from MELSOFT ・Data monitoring func |
| Number of connections | MELSOFT connection + MC protocol + Data monitoring ≤ 4 |
| Number of connectable units to the main unit | 1 unit The Ethernet adapter occupies 1 communication channel in the same way as communication expansion boards and other communication special adapters. |
| Power supply specifications | / 30 mA/5 V DC (5 V DC power is supplied internally from the main unit) |
| Power supply - | Same as connected PLC |
| Ambient temperature | 0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between batch of all terminals and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
FX3S, FX3G (Ver. 2.00 or later), FX3U (Ver. 3.10 or later), FX3GC (Ver. 2.00 or later), FX3UC (Ver. 3.10 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to
