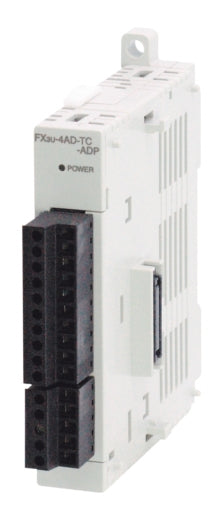

MELSEC-F Series FX3U-4AD-TC-ADP
| Applicable PLC | FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.30 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2). |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| Mass (weight) | 0.1 kg |
| Temperature sensor/Temperature control - Number of input channels | 4 channels |
| Temperature sensor/Temperature control - Rated temperature range - Type K | -100℃ to +1000℃ (-148°F to +1832°F) |
| Temperature sensor/Temperature control - Rated temperature range - Type J | -100℃ to +600℃ (-148°F to +1112°F) |
| Temperature sensor/Temperature control - Digital output - Type K | -1000 to +10000 (-1480 to +18320) Digital values for Celsius setting are given in parentheses. |
| Temperature sensor/Temperature control - Digital output - Type J | -1000 to +6000 (-1480 to +11120) Digital values for Celsius setting are given in parentheses. |
| Temperature sensor/Temperature control - Resolution - Type K | 0.4℃ (0.72°F) |
| Temperature sensor/Temperature control - Resolution - Type J | 0.3℃ (0.54°F) |
| Temperature sensor/Temperature control - Overall accuracy, Measurement accuracy | ±0.5% for +1°C full scale |
| Temperature sensor/Temperature control - Conversion speed - FX3U/FX3UC Series PLC | 200 μs (The data will be updated at every scan time.) |
| Temperature sensor/Temperature control - Conversion speed - FX3S/FX3G/FX3GC Series PLC | 250 μs (The data will be updated at every scan time.) |
| Temperature sensor/Temperature control - Control system | In accordance with a sequence program |
| Power supply specifications | / 5 V DC 15 mA (internal power supply from PLC main unit) 24 V DC +20% -15% 45 mA (External power supply) |
| Ambient temperature | 0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between batch of all terminals and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Grounding | Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly. |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
