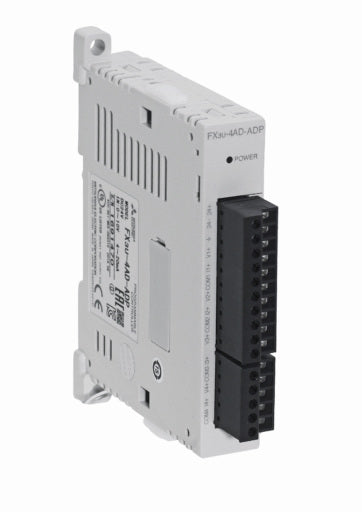

MELSEC-F Series FX3U-4AD-ADP
| Applicable PLC | FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.20 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2). |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| Mass (weight) | 0.1 kg |
| Analog input - Analog input range - Voltage input | 0 V to 10 V DC (Input resistance 194 kΩ) |
| Analog input - Analog input range - Current input | 4 mA to 20 mA DC (Input resistance 250 Ω) |
| Analog input - Number of input channels | 4 channels |
| Analog input - Absolute maximum input - Voltage input | -0.5 V, +15 V |
| Analog input - Absolute maximum input - Current input | -2 mA, +30 mA |
| Analog input - Input characteristics | The input mode (voltage/current input) can be set for each channel. |
| Analog input - Digital output - Voltage input | 12 bits, binary |
| Analog input - Digital output - Current input | 11 bits, binary |
| Analog input - Resolution - Voltage input | 2.5 mV (10 V × 1/4000) |
| Analog input - Resolution - Current input | 10 μA (16 mA × 1/1600) |
| Analog input - Total accuracy - Voltage input | Ambient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale |
| Analog input - Total accuracy - Current input | Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale |
| Analog input - A/D conversion time - FX3U/FX3UC Series PLC | 200 μs (The data will be updated at every scan time.) |
| Analog input - A/D conversion time - FX3S/FX3G/FX3GC Series PLC | 250 μs (The data will be updated at every scan time.) |
| Power supply specifications | / 5 V DC 15 mA (internal power supply from PLC main unit) 24 V DC +20% -15% 40 mA (External power supply) |
| Ambient temperature | 0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between batch of all terminals and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Grounding | Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly. |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT is Ver.1.20 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is re
