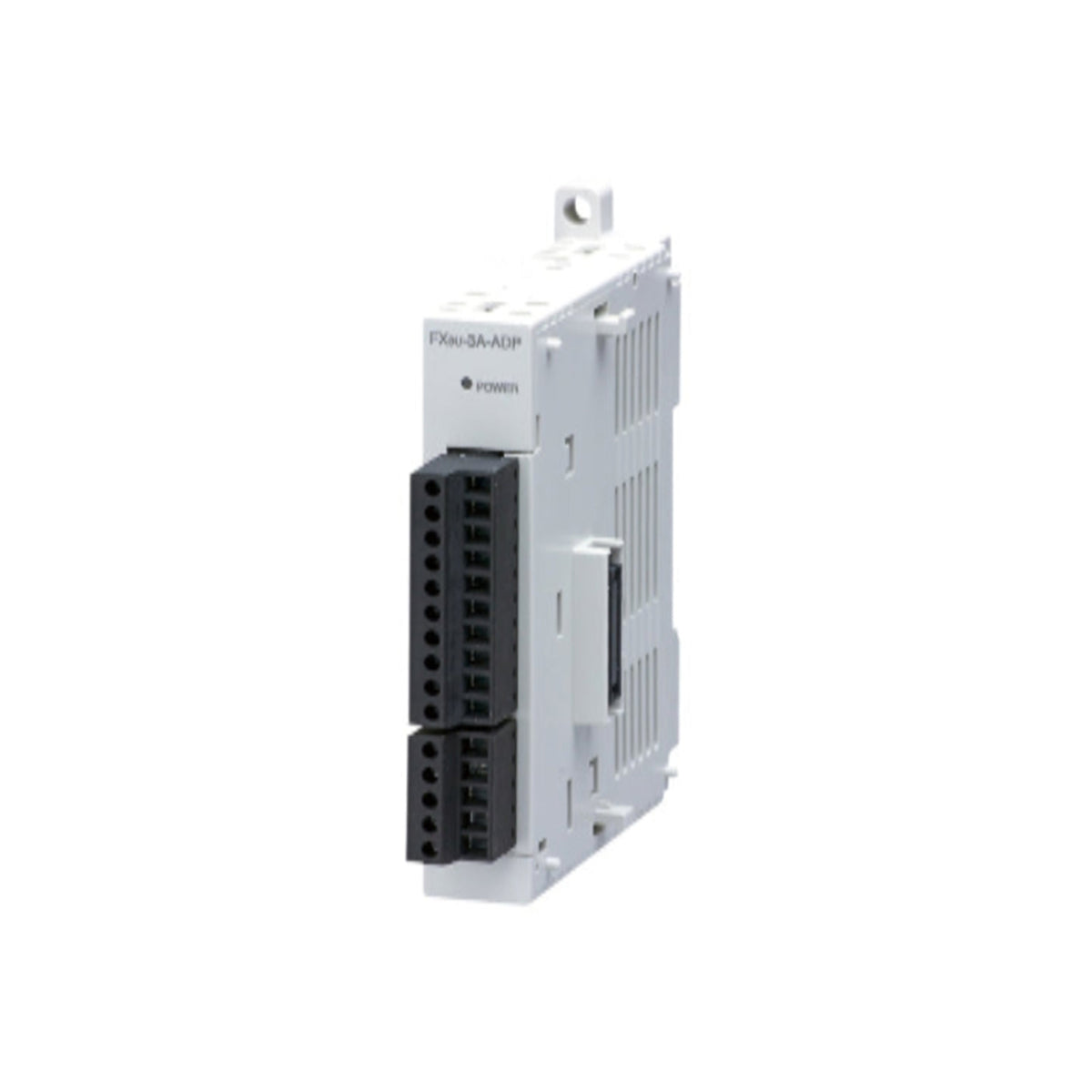

MELSEC-F Series FX3U-3A-ADP
| Applicable PLC | FX3S, FX3G (Ver. 1.20 or later), FX3U (Ver. 2.61 or later), FX3GC, FX3UC (Ver. 2.61 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2). |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| Mass (weight) | Approx. 0.1 kg |
| Analog input - Analog input range - Voltage input | 0 to 10 V DC (Input resistance 198.7 kΩ) |
| Analog input - Analog input range - Current input | 4 to 20 mA DC (Input resistance 250 Ω) |
| Analog input - Number of input channels | 2 channels |
| Analog input - Absolute maximum input - Voltage input | -0.5 V, +15 V |
| Analog input - Absolute maximum input - Current input | -2 mA, +30 mA |
| Analog input - Input characteristics | The input mode (voltage/current input) can be set for each channel. |
| Analog input - Digital output | 12 bits, binary |
| Analog input - Resolution - Voltage input | 2.5 mV (10 V × 1/4000) |
| Analog input - Resolution - Current input | 5 μA (16 mA × 1/3200) |
| Analog input - Total accuracy - Voltage input | Ambient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale |
| Analog input - Total accuracy - Current input | Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale |
| Analog input - A/D conversion time - When FX3U/FX3UC PLC is connected | 80 μs for each selected input channel + 40 μs for each selected output channel (Operation synchronized with sequence program) |
| Analog input - A/D conversion time - When FX3S/FX3G/FX3GC PLC is connected | 90 μs for each selected input channel + 50 μs for each selected output channel (Operation synchronized with sequence program) |
| Analog output - Analog output range - Voltage output | 0 V to 10 V DC (External load resistance: 5 k to 1 MΩ) |
| Analog output - Analog output range - Current output | 4 to 20 mA DC (External load resistance: 500 Ω or less) |
| Analog output - No. of output channels | 1 channel |
| Analog output - Output characteristics | The output mode (voltage/current output) can be set. |
| Analog output - Digital input | 12 bits, binary |
| Analog output - Resolution - Voltage output | 2.5 mV (10 V × 1/4000) |
| Analog output - Resolution - Current output | 4 μA (16 mA × 1/4000) |
| Analog output - Total accuracy - Voltage output | Ambient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale If the external load resistance (Rs) is less than 5 kΩ, the accuracy increases as shown in the following formula: (Increase: 100 mV per 1%) 47 × 100/(Rs+47) - 0.9 (%) |
| Analog output - Total accuracy - Current output | Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale |
| Analog output - Time required for D/A conversion - When FX3U/FX3UC PLC is connected | 80 μs for each selected input channel + 40 μs for each selected output channel (Operation synchronized with sequence program) |
| Analog output - Time required for D/A conversion - When FX3S/FX3G/FX3GC PLC is connected | 90 μs for each selected input channel + 50 μs for each selected output channel (Operation synchronized with sequence program) |
| Power supply specifications | / 24 V DC +20% -15% 90 mA It is necessary to connect a 24 V DC power supply to the terminal block. |
| Power supply - Conversion circuit driving power | 5 V DC 20 mA Internal power supply from the 5 V DC power supply unit of the main unit |
| Ambient temperature | 0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between batch of all terminals and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Grounding | Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly. |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
FX3S, FX3G (Ver. 1.20 or later), FX3U (Ver. 2.61 or later), FX3GC, FX3UC (Ver. 2.61 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC
