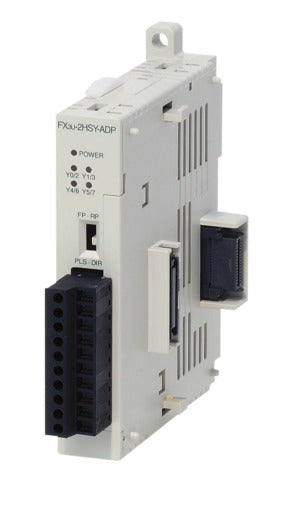

MELSEC-F Series FX3U-2HSY-ADP
| Applicable PLC | FX3U |
| Mass (weight) | 0.08 kg |
| Programming language | Sequence program |
| Pulse output system | Differential line driver system |
| Pulse output form | Pulse train + Direction, Forward/reverse pulse train |
| Number of control axes | Independent two axes (Connect 2 adapters to the main unit to control 4 axes independently). |
| Maximum frequency | 200 kHz |
| Acceleration/deceleration process | In accordance with a sequence program |
| Control unit | pulse |
| Detection of absolute position (Reads out the current value of ABS.) | Using the ABS instruction of the PLC |
| Positioning range | In accordance with a sequence program |
| Position data | 1 point (set in sequence program) |
| Power supply specifications | / 5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC 60 mA (internal power supply from PLC service power) |
| Output specifications | Forward (FP) and reverse (RP) pulse or pulse (PLS) with direction (DIR) can be selected. |
| No. of output points | Differential line driver output |
| Output form | 200 kHz |
| Output method | LED is lit when output is on |
| Ambient temperature | 0 to 55°C when operating and -25 to 75°C when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between output terminal of high-speed output special adapter and ground terminal of PLC main unit: 500 V AC for 1 min |
| Insulation resistance | Between output terminal of high-speed output special adapter and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
