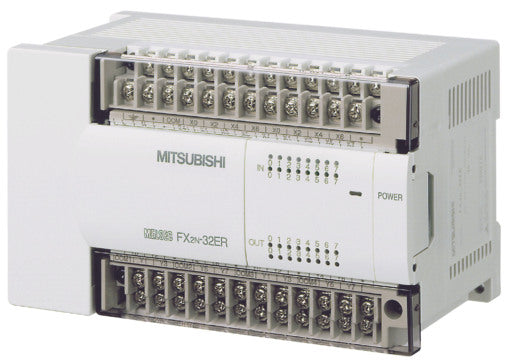

MELSEC-F Series FX2N-32ER-ES/UL
| Applicable PLC | FX1N, FX3G, FX2N, FX3U |
| Mass (weight) | 0.65 kg |
| Power supply specifications | / 100 V to 240 V AC |
| Rated voltage | 85 V to 264 V AC |
| Allowable supply voltage range | 50/60 Hz |
| Frequency rating | 250 V 3.15 A (3 A) |
| Power fuse | 100 V AC: Up to 40 A, 5 ms or less 200 V AC: Up to 60 A, 5 ms or less |
| Rush current | 30 W |
| Power consumption | 24 V DC 250 mA or less When I/O extension blocks are connected, 24 V DC service power is consumed. |
| 24 V DC service power supply | / 16 points |
| Input specifications | Removable terminal block (M3 screw) |
| No. of input points | Sink/source |
| Input connection type | Sink: No-voltage contact input or NPN open collector transistor Source: No-voltage contact input or PNP open collector transistor |
| Input type | 24 V DC ±10% |
| Input signal form | 5 mA/24 V DC |
| Input signal voltage | 4.3 kΩ |
| Input signal current | 3.5 mA or more |
| Input impedance | 1.5 mA or less |
| ON input sensitivity current | Approx. 10 ms |
| OFF input sensitivity current | Photocoupler insulation |
| Input response time | LED on panel lights when input. |
| Indication of input operation | / 16 points |
| Input circuit configuration | Removable terminal block (M3 screw) |
| Output specifications | Relay |
| No. of output points | 30 V DC or less 240 V AC or less (250 V AC or less when the unit does not comply with CE, UL or cUL standards) |
| Output connection type | 2 A/1 point The total load current per common terminal should be the following value. ・4 output points/common terminal: 8 A or less |
| Output type | 80 VA |
| External power supply | 5 V DC, 2 mA (reference value) |
| Max. load - Resistance load | Approx. 10 ms |
| Max. load - Inductive load | Approx. 10 ms |
| Min. load | Mechanical insulation |
| Response time - OFF→ON | When power is applied to relay coil, LED is lit. |
| Ambient temperature | 0 to 55°C when operating and -25 to 75°C when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2. |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between power supply terminal (AC power supply) and ground terminal: 1500 V AC for 1 min Between 24 V DC service power supply connected to input terminal (24 V DC) and ground terminal: 500 V AC for 1 min Between output terminal (relay) and ground terminal: 1500 V AC for 1 min |
| Insulation resistance | Between each terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Grounding | Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly. |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
