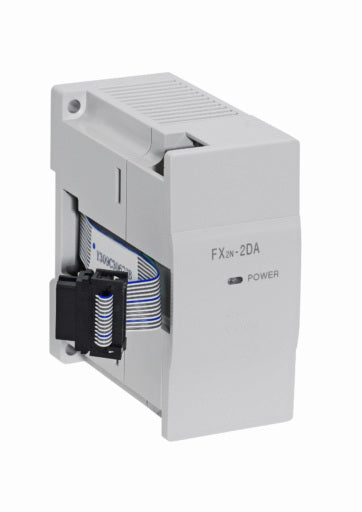

MELSEC-F Series FX2N-2DA
| Applicable PLC | FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC. |
| Number of occupied I/O points | 8 points (Taken from either the input or output points of the PLC.) |
| Mass (weight) | 0.2 kg |
| Analog output - Analog output range - Voltage output | 0 V to 10 V DC, 0 V to 5 V DC, (External load resistance: 2 k to 1 MΩ) |
| Analog output - Analog output range - Current output | 4 mA to 20 mA DC (External load resistance: 400 Ω or less) |
| Analog output - No. of output channels | 2 channels |
| Analog output - Digital input | 12 bits, binary |
| Analog output - Resolution - Voltage output | 0 V to 10 V: 2.5 mV (10 V × 1/4000) 0 V to 5 V: 1.25 mV (5 V × 1/4000) |
| Analog output - Resolution - Current output | 4 μA (16 mA × 1/4000) |
| Analog output - Total accuracy - Voltage output | ±1% (±0.1 V) for 10 V full scale Same for 0 to 5 V DC output (±0.1 V) |
| Analog output - Total accuracy - Current output | ±1% (±0.16 mA) for 16 mA full scale |
| Analog output - Time required for D/A conversion | 4 ms/1 channel (Operation synchronized with sequence program) |
| Power supply specifications | / 5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 85 mA (internal power supply from PLC main unit) |
| Ambient temperature | 0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between batch of all terminals and ground terminal of PLC main unit: 500 V AC for 1 min |
| Insulation resistance | Between batch of all terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Grounding | Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly. |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
