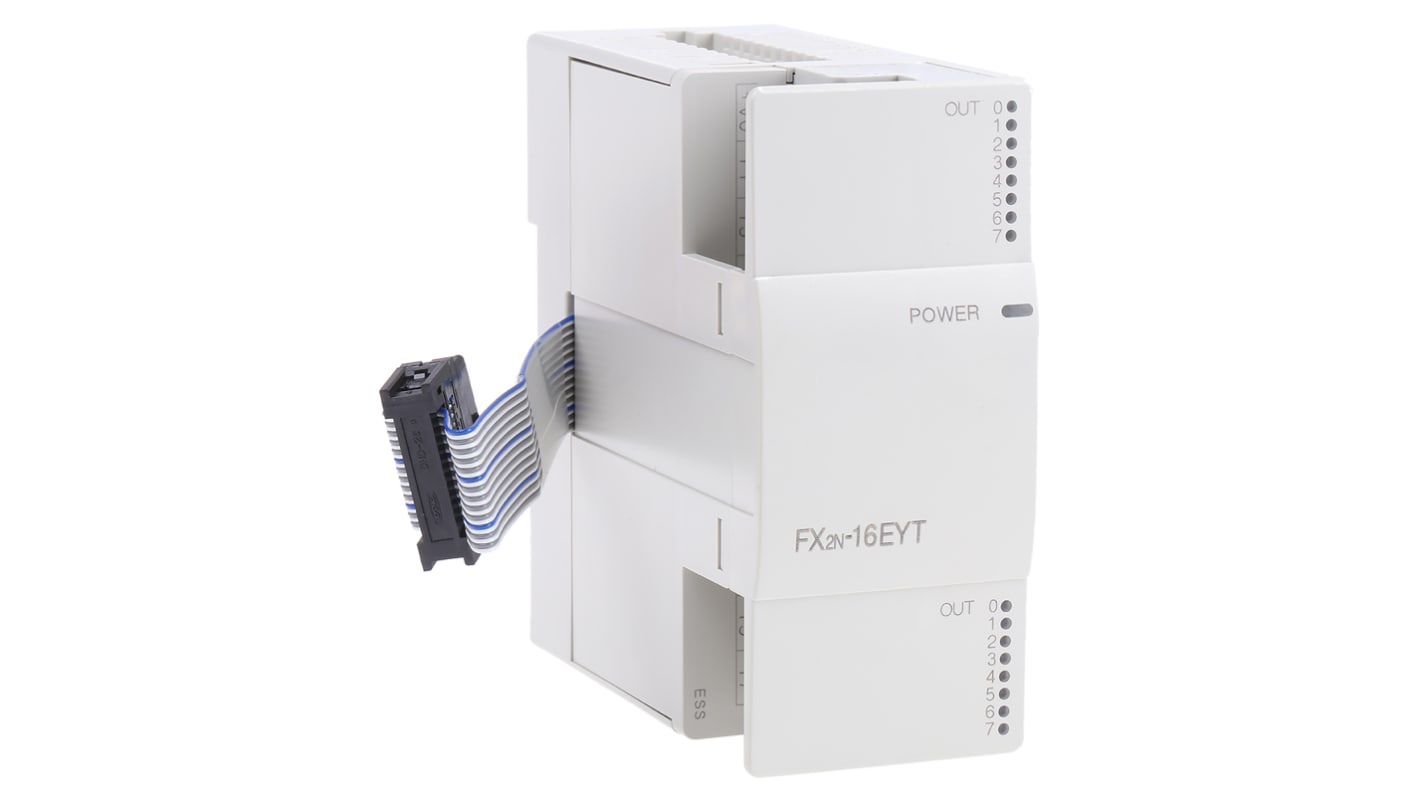

MELSEC-F Series FX2N-16EYT
| Applicable PLC | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC, FX3UC. |
| Mass (weight) | 0.3 kg |
| Power supply specifications | / PLC internal power |
| Rated voltage | / 16 points |
| Output specifications | Vertical terminal block (M3 screws) |
| No. of output points | Transistor/sink output |
| Output connection type | 5 V to 30 V DC |
| Output type | 0.5 A/1 point The total load current per common terminal should be the following value. ・4 output points/common terminal: 0.8 A or less ・8 output points/common terminal: 1.6 A or less |
| External power supply | 12 W/24 V DC |
| Max. load - Resistance load | 0.1 mA/30 V DC |
| Max. load - Inductive load | 1.5 V or less |
| Open circuit leakage current | 0.2 ms or less for 200 mA (at 24 V DC) |
| ON voltage | 0.2 ms or less for 200 mA (at 24 V DC) |
| Response time - OFF→ON | Photocoupler insulation |
| Response time - ON→OFF | When photocoupler is driven, LED on panel is lit. |
| Ambient temperature | 0 to 55°C when operating and -25 to 75°C when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2. |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between output terminal (transistor) of extension output block and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between output terminal (transistor) of extension output block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to conn
