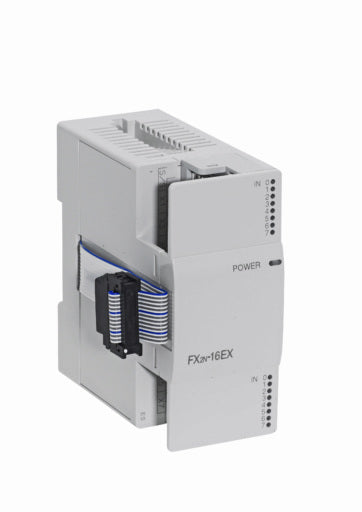

MELSEC-F Series FX2N-16EX-ES/UL
| Applicable PLC | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC, FX3UC. |
| Mass (weight) | 0.3 kg |
| Power supply specifications | / PLC internal power |
| Rated voltage | / 16 points |
| Input specifications | Vertical terminal block (M3 screws) |
| No. of input points | Sink/source |
| Input connection type | Sink: No-voltage contact input or NPN open collector transistor Source: No-voltage contact input or PNP open collector transistor |
| Input type | 24 V DC±10% |
| Input signal form | 5 mA/24 V DC |
| Input signal voltage | 4.3 kΩ |
| Input signal current | 3.5 mA or more |
| Input impedance | 1.5 mA or less |
| ON input sensitivity current | Approx. 10 ms |
| OFF input sensitivity current | Photocoupler insulation |
| Input response time | LED on panel lights when input. |
| Ambient temperature | 0 to 55°C when operating and -25 to 75°C when stored |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Vibration resistance - Installed on DIN rail - Frequency: 10 to 57 Hz | Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Installed on DIN rail - Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Vibration resistance - Direct installing - Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2. |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2. |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between input terminal of extension input block and ground terminal: 500 V AC for 1 min |
| Insulation resistance | Between input terminal of extension input block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
