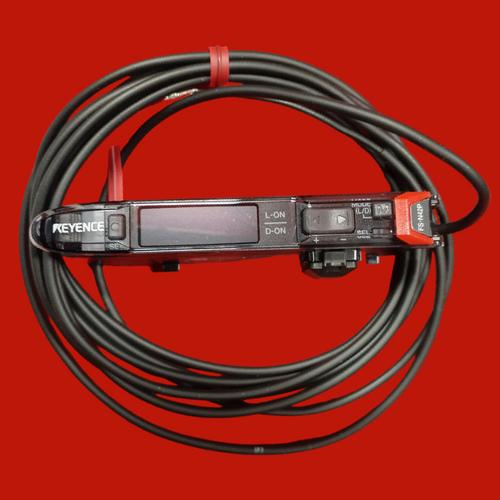

Amplifier Units Cable type Expansion Unit PNP FS-N42P
| Model | |
| FS-N42P; Type | |
| Cable; Output | |
| PNP; Main unit/expansion unit | |
| Expansion unit; Response time | |
| 23 µs (S-HSPD *1 ) /50 µs (HSPD *2 ) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA) /64 ms (TERA); Number of control outputs | |
| 1; Number of external inputs | |
| ―; Light source LED | |
| Transmitter side | Red, four-element LED (wavelength: 660 nm); Control output |
| Open-collector, 30 V or less 100 mA or less per output, 100 mA or less total for 2 outputs (when used as a solitary unit) /20 mA or less (when used as an expansion unit) Residual voltage | 1.6 V or less (output current: 10 mA or less) /2.2 V or less (output current: 10 to 100 mA); External input |
| Input time | 2 ms (ON) /20 ms (OFF) or longer *3; Unit expansion |
| Up to 16 units (17 units connected in total including the main unit) . However, each dual output type will be treated as two expansion units.; Protection circuit | |
| Protection against reverse power connection, output overcurrent, output surge, and reverse output connection; Mutual interference prevention | |
| S-HSPD/HSPD | 0 units, FINE: 4 units, TURBO/SUPER/ULTRA/MEGA/TERA: 8 units (The mutual interference prevention values are twice those shown here when Double is set.); Power supply |
| Power voltage | |
| 10 to 30 VDC (including 10 % ripple (P-P) or less) , class 2 or LPS *4; Power consumption | |
| During normal operation | 910 mW or less (36 mA or less at 24 V/65 mA or less at 12 V) ECO ON: 840 mW or less (33 mA or less at 24 V/60 mA or less at 12 V) ECO FULL: 750 mW or less (30 mA or less at 24 V/52 mA or less at 12 V) *5; Environmental resistance |
| Ambient light | |
| Incandescent lamp | 20,000 lx or less, sunlight: 30,000 lx or less; Ambient temperature |
| -20 °C -4 °F to +55 °C +131 °F (no freezing) *6; Vibration resistance | |
| 10 to 55 Hz; double amplitude 1.5 mm 0.06" ; 2 hours each for X, Y, and Z axes; Shock resistance | |
| 500 m/s 2 ; 3 times each for X, Y, and Z axes; Case material | |
| Main unit and cover | polycarbonate; Weight |
| Approx. 48 g; *1 Restrictions when S-HSPD is selected Area detection, Area % Mode, DATUM, Rising edge, and Falling edge cannot be selected for Detection Mode. Output timer, Limit Detection, and Display Gain cannot be used. FULL cannot be selected for the ECO function. *2 Restrictions when HSPD is selected Display Gain cannot be used. *3 The input time becomes 25 ms (ON)/25 ms (OFF) when external calibration input is selected. *4 When expanding the system to 9 or more units, use a power supply voltage of 12 V or higher. *5 The load current is excluded. The power consumption including the load when the maximum number of units are connected is 38 W max. *6 When expanded by 1 to 2 units | -20°C -4°F to +55°C +131°F . When expanded by 3 to 10 units: -20°C -4°F to +50°C +122°F . When expanded by 11 to 16 units: -20°C -4°F to +45°C +113°F . When using 2 outputs, 1 unit is counted as 2 units. The prescribed values for the ambient temperature assume that the sensor amplifi er has been mounted on a DIN rail installed on a metal surface. Exercise special care when installing the product in an airtight space. |
FS-N42P, Amplifier Units Cable type Expansion Unit PNP in FS-N40 series by KEYENCE America.
