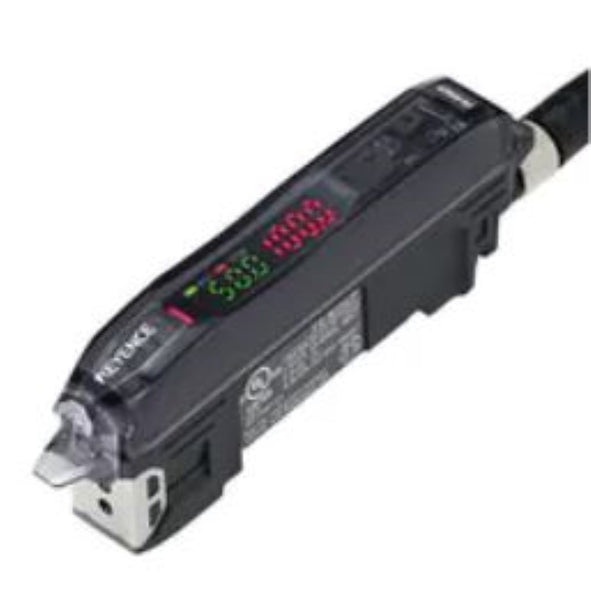

Fiber Amplifier, M8 Connector Type, PNP FS-N15CP
| Model | |
| FS-N15CP; Type | |
| IP66 Fiberoptic Amplifier, 1 output type; Output | |
| PNP; I/O format | |
| M8 connector *1; Main unit/expansion unit | |
| Main unit; Control output | |
| 1 output PNP open collector 24 V or less; maximum 100 mA or less, residual voltage 1 V or less; External input | |
| 1 Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.); Output toggle | |
| Light-ON/Dark-ON switchable; Light source LED | |
| Red 4-element LED (wavelength 630 nm); Timer function | |
| Timer OFF/OFF delay/ON delay/One-shot; Response time | |
| 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA); Number of interference prevention units | |
| 0 units (expansion not possible); Case size | |
| H30.3mm 1.19" x W9.8mm 0.39" x L71.8mm 2.38"; Unit expansion | |
| 0 units (expansion not possible); Protection circuit | |
| Reverse polarity protection, Over-current protection, Surge absorber; Rating | |
| Power voltage | |
| 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less; Current Consumption | |
| Normal | 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V) *2 Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V) *2 Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V); Environmental resistance |
| Enclosure rating | |
| IP66 *3 *4; Ambient light | |
| Incandescent lamp | 20,000 lux or less, Sunlight: 30,000 lux or less; Ambient temperature |
| -20 to +55 °C -4 to 131 °F (No freezing); Relative humidity | |
| 35 to 85 % RH (No condensation); Vibration resistance | |
| 10 to 55 Hz, Double amplitude 1.5 mm 0.06" , 2 hours in each of the X, Y, and Z directions; Shock resistance | |
| 500 m/s 2 , 3 times in each of the X, Y, and Z directions; Material | |
| Adapter | |
| Glass-reinforced PBT; Weight | |
| Approx. 30 g; *1 Use a cable of 30 m 98.43' or less. *2 Increases 100 mW (4.0 mA) for High Speed mode *3 About the enclosure rating when a small-diameter fiber unit (the diameter of the cable is ø1.3 or ø1.0) is used. IP66/IP65 cannot be satisfied when the type whose diameter is ø1.3 and terminal can be separated (FU-4F/ 66/91/93/43/63/63T etc.) is used. When any small-diameter fiber units except for the above are used, IP65 is applied. *4 In any of the following cases, the enclosure rating IP66/IP65 cannot be satisfied. When the Fiber Unit and KEYENCE's M8 connector cable are not connected (Recommended conditions to tighten up the M8 connector | Tighten it by hand first.Then retighten it as much as 1/16-1/8 of a rotation with pliers.) When the Fiber Unit and KEYENCE's M8 connector cable are not connected When the dust cover of the Sensor Amplifier is open When there is debris in the dust cover When the waterproof adapter A/B are not used at the time of installation of a small-diameter fiber unit. |
FS-N15CP, Fiber Amplifier, M8 Connector Type, PNP in FS-N series by KEYENCE America.
