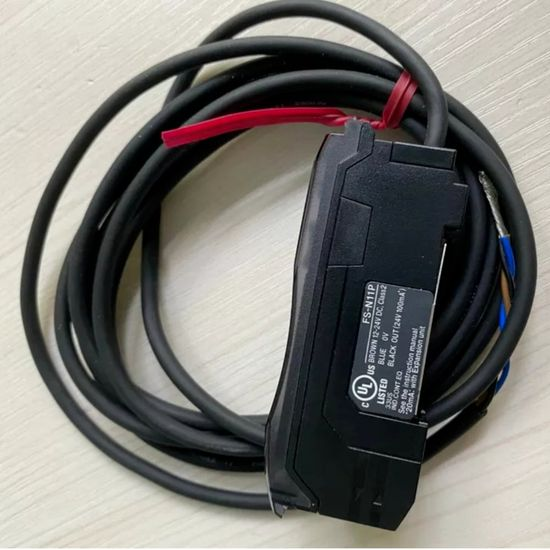

Fiber Amplifier, Cable Type, Main Unit, PNP FS-N11P
| Model | |
| FS-N11P; Type | |
| Standard 1 output Cable; Output | |
| PNP; Main unit/expansion unit | |
| Main unit; Control output | |
| 1 PNP open collector 24 V; 1 output max | 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less; External input |
| -; Light source LED | |
| Red, 4-element LED; APC | |
| ON/OFF switchable (Factory setting | OFF); Response time |
| 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA); Number of interference prevention units | |
| 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.); Unit expansion | |
| Up to 16 units can be connected total (two output type is treated as two units); Rating | |
| Power voltage | |
| 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less; Current Consumption | |
| Normal | 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V) *1 Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V) *1 Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V); Environmental resistance |
| Ambient light | |
| Incandescent lamp | 20,000 lux or less, Sunlight: 30,000 lux or less; Ambient temperature |
| -20 to +55 °C -4 to +131 °F (No freezing) *2; Relative humidity | |
| 35 to 85 % RH (No condensation); Vibration resistance | |
| 10 to 55 Hz, Double amplitude 1.5 mm 0.06" , 2 hours in each of the X, Y, and Z directions; Shock resistance | |
| 500 m/s 2 , 3 times in each of the X, Y, and Z directions; Case material | |
| Both main unit and expansion unit housing material | Polycarbonate; Weight |
| Approx. 75 g; *1 Increases 100 mW (4.0 mA) for High Speed mode *2 One or two more units connected | -20 to +55 °C (-4 to +131 °F) ; 3 to 10 more units connected: -20 to +50 °C (-4 to +122 °F) ; 11 to 16 more units connected: -20 to +45 °C (-4 to +113 °F) . When using 2-outputs, one unit is counted as two units. All temperature regulations are for when the unit is mounted on a DIN rail and installed on metal sheeting. |
FS-N11P, Fiber Amplifier, Cable Type, Main Unit, PNP in FS-N series by KEYENCE America.
