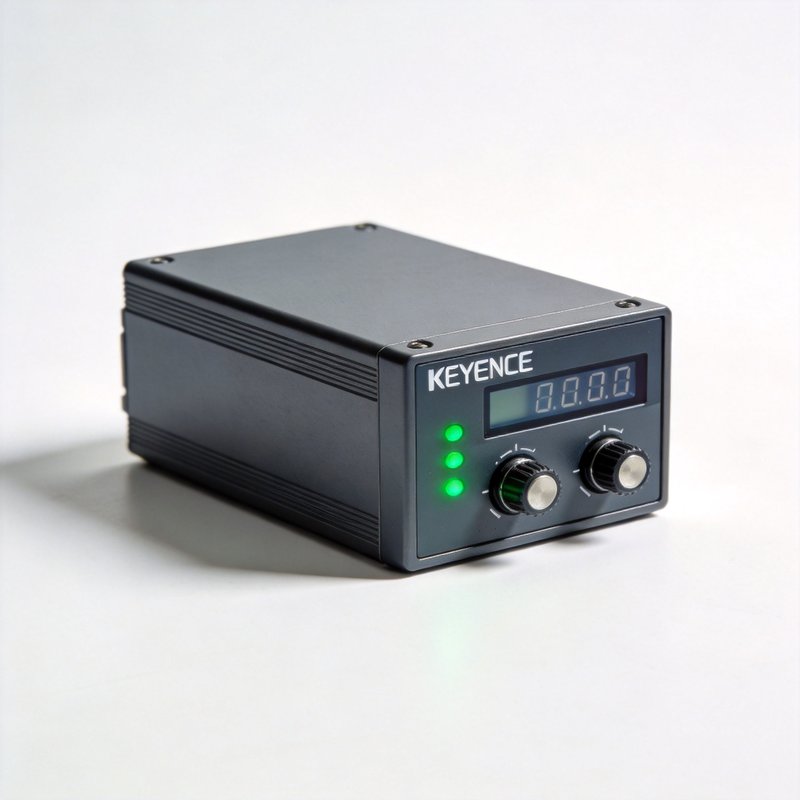

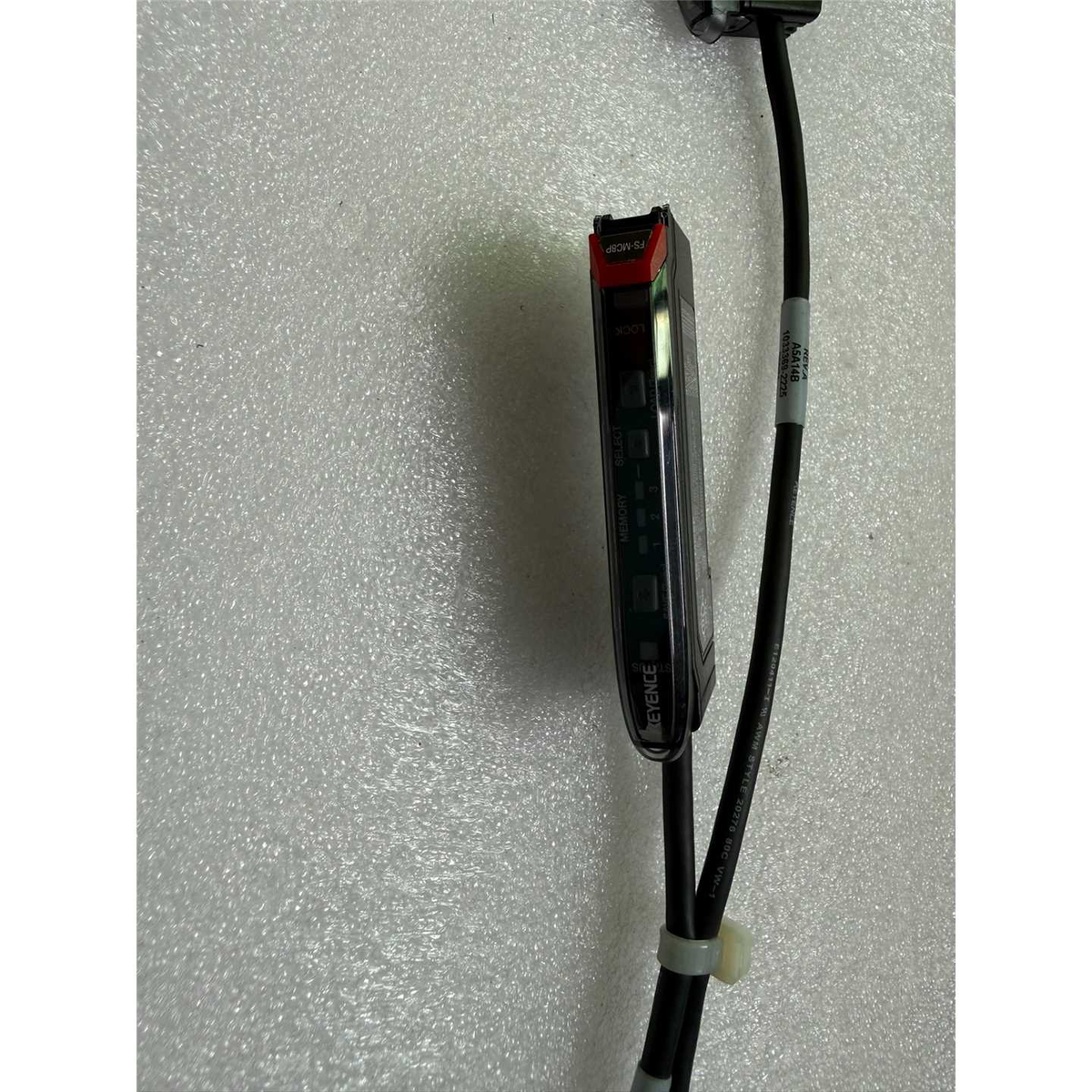

Multi-Output Units NPN FS-MC8N
| Model | |
| FS-MC8N; Output | |
| NPN; Response time | |
| Depends on the response time settings of the connected expansion units; External input | |
| Input time of the connected expansion units +11 ms; Number of inputs and outputs | |
| Separate control outputs | 8, common output: 1, common input: 1; Unit expansion |
| Up to 8 expansion units can be connected. (However, each dual output type will be treated as 2 expansion units.) Allowable passing current | 1200 mA or less; Indicators |
| STATUS indicator (green and red two-color display) MEMORY indicator (orange) LOCK indicator (orange); Separate control output, common output | |
| NPN open-collector, 30 V or less, 20 mA or less per output, residual voltage | 1.4 V or less; Protection circuit |
| Protection against reverse power connection, reverse output connection, output overcurrent, and output surge; Power supply | |
| Power voltage | |
| 10 to 30 VDC (including 10 % ripple (P-P) or less) , class 2 or LPS *1; Power consumption | |
| 690 mW or less (when used as a solitary unit) (26 mA or less at 24 V/38 mA or less at 12 V [excluding the load current] ) *2; Environmental resistance | |
| Ambient temperature | |
| -20 °C -4 °F to +55 °C +131 °F (no freezing); Vibration resistance | |
| 10 to 55 Hz; double amplitude 1.5 mm 0.06" ; 2 hours each for X, Y, and Z axes; Shock resistance | |
| 500 m/s 2 ; 3 times each for X, Y, and Z axes; Case material | |
| Main unit and cover | polycarbonate; Weight |
| Approx. 110 g; *1 Match the rated power supply voltage of the expansion units to be connected to the system. *2 The power consumption including the load when the maximum number of units are connected is 38 W max. | |
FS-MC8N, Multi-Output Units NPN in FS-N40 series by KEYENCE America.
