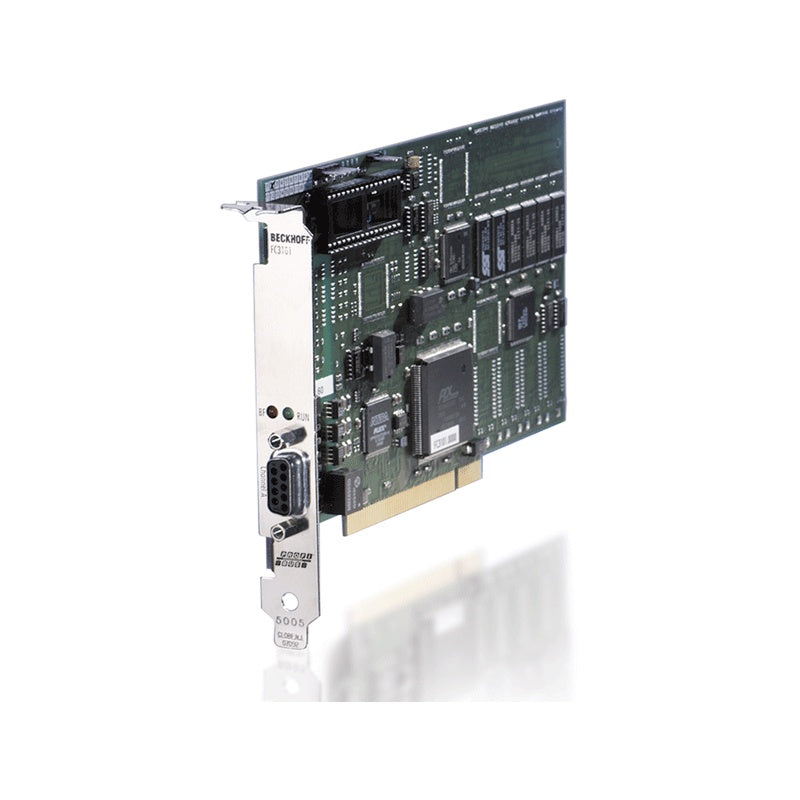

Beckhoff FC3101-0000 | Beckhoff Pcs

FC3101 | PROFIBUS master/slave card, 1 channel, PCI™

PROFIBUS DP, DP-V1 and DP-V2 (MC): the PROFIBUS PCI™ Fieldbus Cards from Beckhoff can master the PROFIBUS protocol with all its features. Thanks to the...

Technical Specifications

FC3101-0000 FC3101-0002 Fieldbus PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) PC interface PCI™ Number of channels 1 Data transfer rates 9.6 kbaud…12 Mbaud Bus interface 1 x D-sub socket, 9-pin, galvanically decoupled Cycle time differing DP cycle times per slave are possible using the CDL concept Bit width in the process image per channel total max.: 3 kbyte input and output data NOVRAM – 32 kbytes Hardware diagnostics 2 LEDs per channel Dimensions (W x H x D) single slot, approx. 106 mm x 175 mm Operating temperature 0…55°C

Availability: regular delivery
