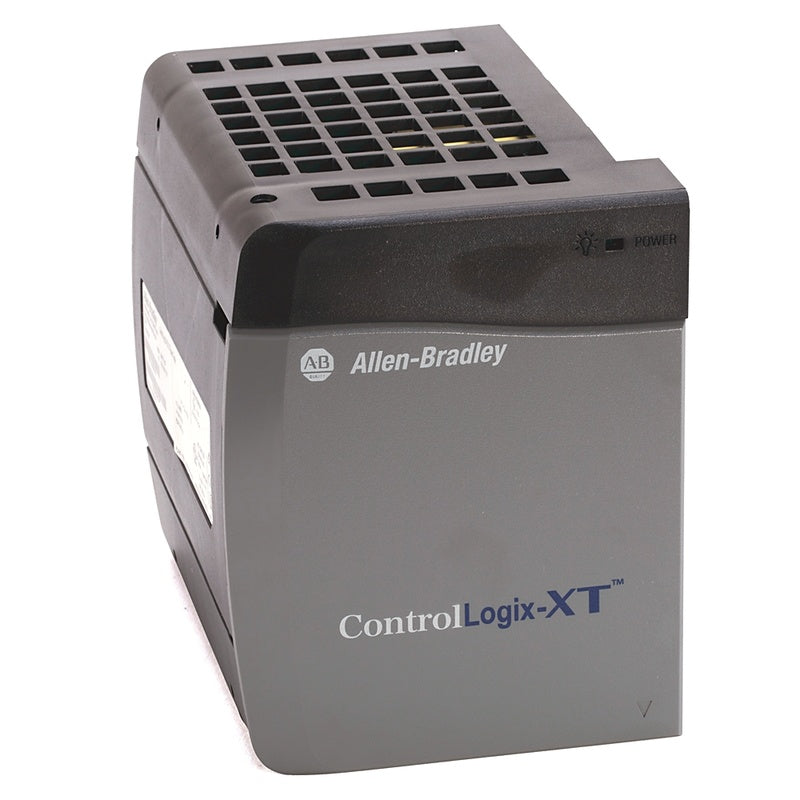

Allen-Bradley 1756-PBXTR - Extended Temp DC Redundant Supply
Allen-Bradley 1756-PBXTR - Extended Temp DC Redundant Supply

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 1756-PBXTR - Extended Temp DC Redundant Supply

SKU: 1756-PBXTR
(3)
$474.00
-87% $3,680.00 $474.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Extended Temp DC Redundant Supply

ControlLogix Extended Temperature 19-32 VDC Redundant Power Supply

Specifications

  • Connection Cables: None required
  • Annunciator power: 240V AC 50/60 Hz, 240V DC @ 50mA, resistive only, 90V DC for ATEX/IECEx
  • Conductor screw torque: 0.565 nm
  • Current capacity: 4A @ 3.3V DC
  • Depth: 137 mm
  • Enclosure type rating: None (open-style)
  • Height: 175 mm
  • Input power, max: 81 W
  • Input voltage at DC: 18 V
  • Input voltage, nom: 24V DC
  • Inrush current, max: 30 A
  • ISAGX: false
  • Operating temperature: -25 to 70 ¡ãC
  • Output voltage at DC: 5.1 V
  • Pilot duty rating: Annunciator - not rated
  • Power output: 52 W
  • Power output, max: 52 W
  • Redundancy capable: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Suitable for safety functions: false
  • Type of output voltage: DC
  • Type of voltage (input voltage): DC
  • Vibration: 2 G @ 10...500 Hz
  • Voltage variation: IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ¡À20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports
  • Weight: 1.45 kg
  • Width: 145 mm
  • Wire category: 1 - on power ports, 3 - on annunciator ports, 3 - on 1756-CPR2 connections
  • Wire size: Power: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max, Annunciator: 0.25¡­2.5 mm2 (22 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulat
  • Product Series: A
