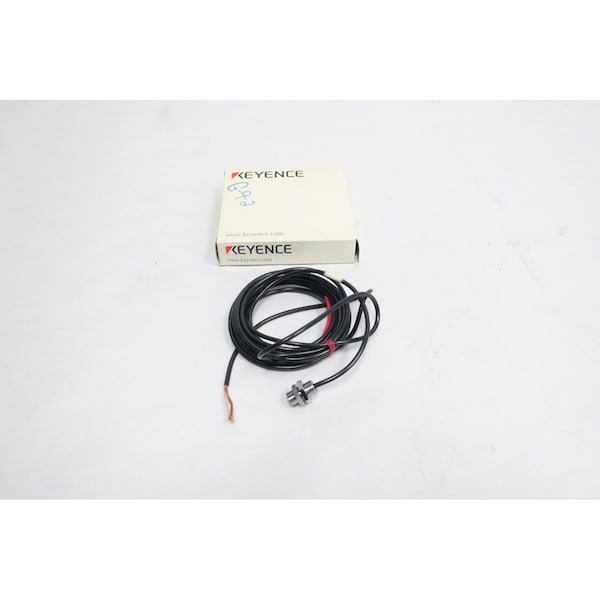

Sensor Head EX-110V
| Model | |
| EX-110V *1; Type | |
| Sensor head; Amplifier unit | |
| NPN | EX-V02 PNP: EX-V02P; Shape |
| M10 x 18 mm 0.71" Threaded; Measuring range | |
| 0 to 2 mm 0 to 0.08"; Display range | |
| -19,999 to +19,999; Linearity | |
| ±0.3% of F.S.; Resolution (No. of averaging measurements | 64) |
| 0.4 μm; Sampling rate | |
| 40,000 samplings max./sec. *2; Display speed | |
| 20 times/sec.; Display power | |
| 7-segment 2-color LED; Over-range alarm | |
| ±FFFF is displayed.; Control input | |
| NPN open-collector or non-voltage contact (Timing input, Reset input, Auto-zero input, Comparator output disable input, Synchronous input, External setting input)/PNP | Applied voltage; 10 to 30 V; Control output |
| Setting method | |
| Upper/lower 2-level setting x 4 patterns (selectable); Signal | |
| NPN open-collector (HIGH, GO and LOW) | 100 mA max. (40 V max.) PNP open-collector (HIGH, GO and LOW): 100 mA max. (30 V max.); Response time |
| 0.075 ms (at maximum speed); OFF-delay time | |
| 60 ms; Strobe output | |
| NPN | 100 mA max. (40 V max.)/PNP: 100 mA max. (30 V max.), Residual voltage: 1 V max. (N.O.); Alarm output |
| NPN | 100 mA max. (40 V max.)/PNP: 100 mA max. (30 V max.), Residual voltage: 1 V max. (N.C.); Analog output voltage |
| Output voltage | |
| ±5V; Impedance | |
| 100 Ω; Response time | |
| 0.075 ms (at maximum speed); Temperature characteristics | |
| 0.07% of F.S./°C *3; Major functions | |
| FLL, digital filter, auto zero, offset, calculation, measurement mode (15 types), judgment value memory (4 sets), decimal point shift, display digit changing, display of various errors, etc.; Rating | |
| Power voltage | |
| 24 VDC ±10%, Ripple (P-P) | 10% max.; Current consumption |
| 240 mA max.; Environmental resistance | |
| Ambient temperature | |
| -10 to +60 °C 14 to 140 °F , No freezing; Relative humidity | |
| 35 to 85%, No condensation; Vibration resistance | |
| 10 to 55 Hz, Double amplitude 1.5 mm 0.06" , 2 hours in each of the X, Y, and Z directions; Weight | |
| Approx. 55 g (including 3 m 9.8' cable); *1 The above data was obtained using an iron target (S45C, SS400, t=1 mm 0.04" ). When measuring aluminum, copper, or stainless steel targets, refer to the linear characteristics for these materials. *2 When the digital filter function is used, the sampling rate is 20,000 sampling/sec. *3 When the distance between the sensor head and the target is within 50% of the measuring range. | |
EX-110V, Sensor Head in EX-V series by KEYENCE America.
