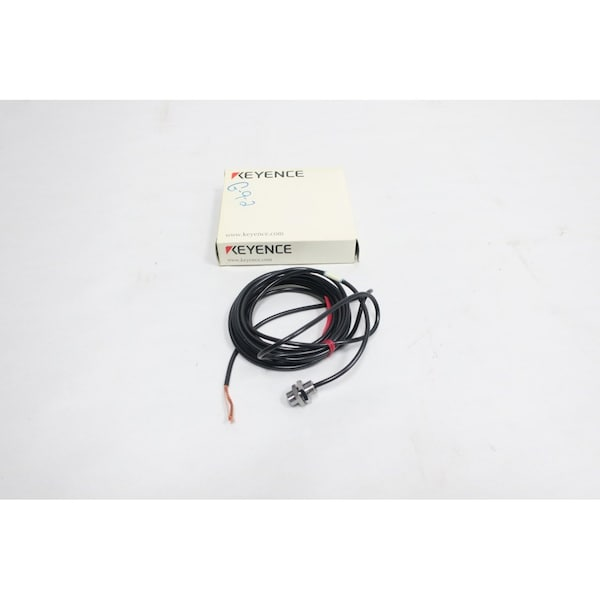

Sensor Head EX-110
| Model | |
| EX-110; Type | |
| Sensor head; Amplifier unit | |
| EX-202; Shape | |
| M10 Threaded; Measuring range | |
| 0 to 2 mm 0.08"; Analog output | |
| Output voltage | |
| 0 to 5 V (Output impedance 100 Ω) *1; Output current | |
| 4 to 20 mA (Applicable load | 0 to 350 Ω) *1; Resolution |
| 0.04 % of F.S. (Response frequency | LOW) *1; Linearity |
| ±1 % of F.S. *1; Response frequency | |
| HIGH | |
| 15 kHz (-3 dB) *1; LOW | |
| 1.3 kHz (-3 dB) *1; Disconnection alarm output (N.C.) | |
| NPN | 100 mA (40 V) max., Residual voltage: 1 V max. (N.C.) *2; Functions |
| Auto-zero function/Response frequency selecting function; Temperature characteristics | |
| 0.03 % of F.S./°C *3 *1; Rating | |
| Power supply voltage | |
| 12 to 24 VDC ±10%; Current consumption | |
| 240 mA max.; Environmental resistance | |
| Enclosure rating | |
| IP67; Ambient temperature | |
| -10 to +60 °C 14 to 140 °F (No freezing); Relative humidity | |
| 35 to 85 % RH (No condensation); Vibration resistance | |
| 10 to 55 Hz, Double amplitude 1.5 mm 0.06" , 2 hours in each of the X, Y, and Z directions; Weight | |
| Sensor head | |
| Approx. 55 g (including nuts and 3-m 9.8' cable); *1 The above data was obtained using a steel target (S45C, SS41, t = 1 mm 0.04" ). When measuring aluminum, copper, or stainless steel targets, refer to the linear characteristics for these materials. *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter. *3 When the distance between the sensor head and the target is within 50 % of the measuring range. | |
EX-110, Sensor Head in EX-200 series by KEYENCE America.
