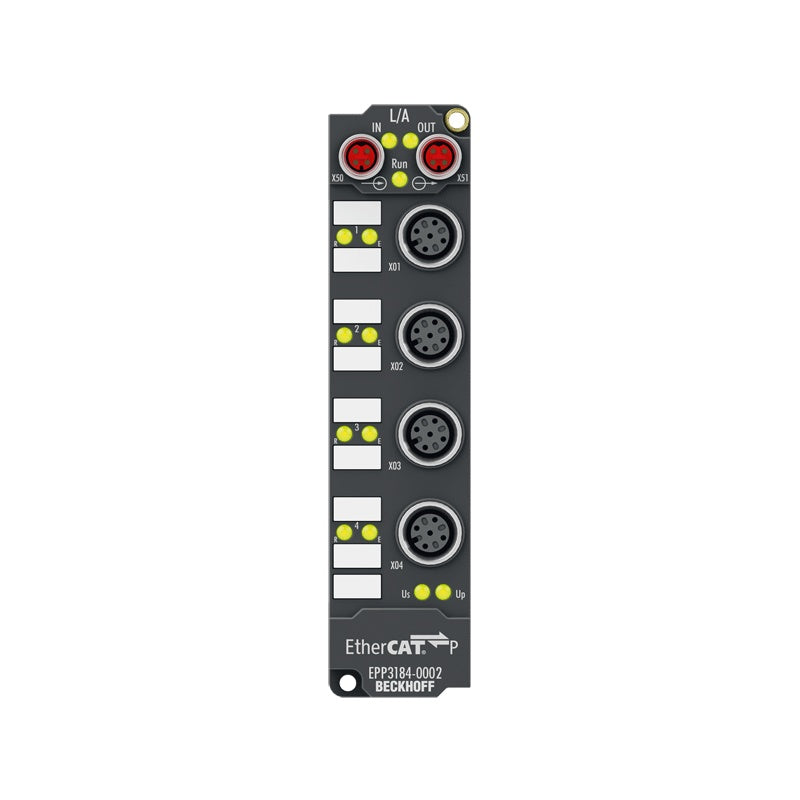

EPP3184-0002 | EtherCAT P Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

The EPP3184-0002 EtherCAT P Box has four analog inputs which can be individually parameterized, so that they process signals either in the -10/0…+10 V ...

Technical Specifications

EPP3184-0002 Protocol EtherCAT Bus interface 2 x M8 socket, P-coded, shielded Number of inputs 4 (single-ended) Input connections M12 x 1, 5-pin, A-coded Conversion time ~ 100 µs Resolution 16 bit (incl. sign) Signal type -10/0…+10 V | 0/4…20 mA, parameterizable per channel Common mode voltage U CM max. 35 V Internal resistance > 200 kΩ | typ. 85 Ω + diode voltage Measurement error/uncertainty Input filter cut-off frequency 5 kHz Nominal voltage 24 V DC (-15%/+20%) Distributed clocks yes Input filter configurable Sensor supply from load supply voltage U P Current consumption from U S typ. 100 mA Electrical isolation 500 V Special features current or voltage parameterizable Weight approx. 165 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect.

Availability: regular delivery
