Beckhoff EPP1332-0001 | Beckhoff Ethercat Box

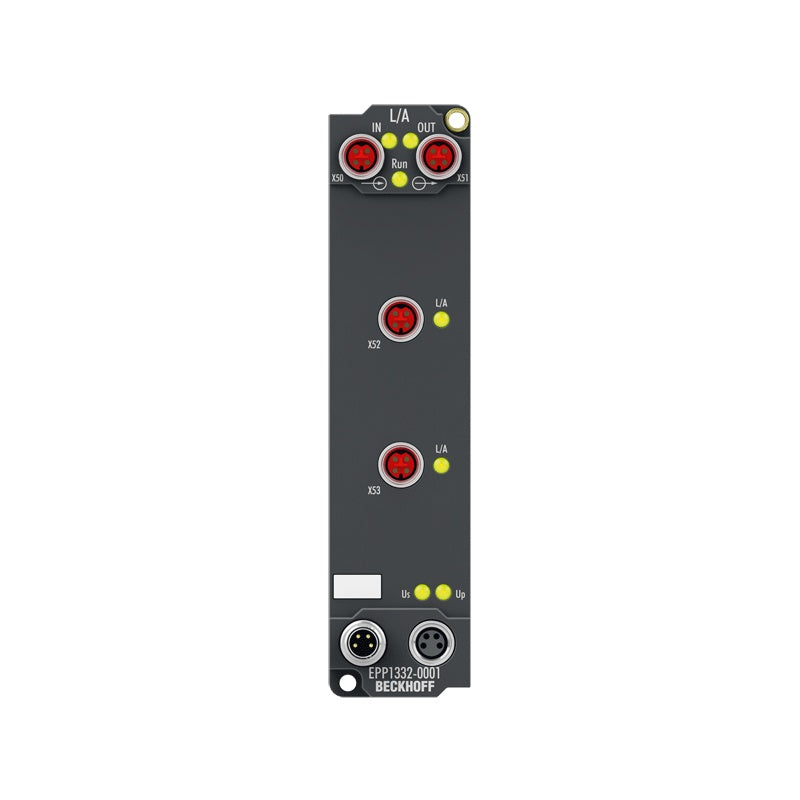

EPP1332-0001 | EtherCAT P Box, 2-port EtherCAT P junction, with refresh

The EPP1322-0001 EtherCAT P junction in IP67 are available for flexible topology configurations. The current carrying capacity of 3 A per EtherCAT P segment...

Technical Specifications

EPP1332-0001 Protocol EtherCAT P Bus interface M8 socket, P-coded, shielded Task within EtherCAT system 2-port EtherCAT P junction and refresh of U S and U P Number of channels IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P Nominal voltage 24 V DC (-15%/+20%) Sum current max. 3 A per U S and U P for all EtherCAT P ports in total Current consumption from U S typ. 100 mA Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Distributed clocks – Distance between stations 100 m (100BASE-TX) Data transfer rates 100 Mbit/s Configuration not required Weight approx. 165 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
