Beckhoff EP3314-0002 | Beckhoff Ethercat Box

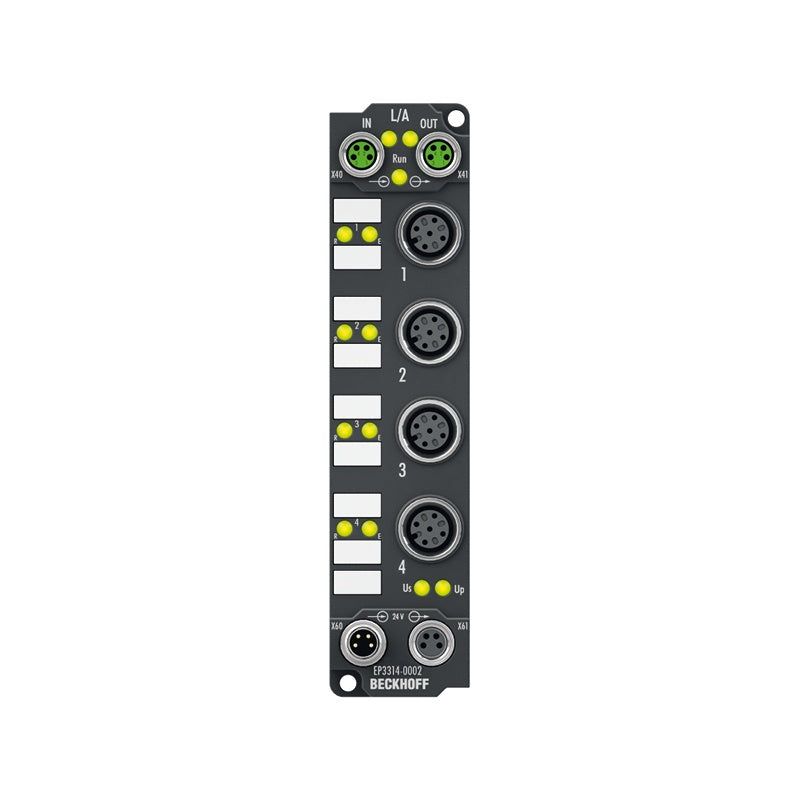

EP3314-0002 | EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12

The EP3314-0002 EtherCAT Box with analog inputs permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors...

Technical Specifications

EP3314-0002 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Number of inputs 4 Input connections M12 x 1, 5-pin, A-coded Connection technology 2-wire for thermocouple Conversion time approx. 2.5 s up to 20 ms, depending on configuration and filter setting, see documentation, default: approx. 250 ms Voltage measurement ±30/±60/±75 mV Resolution 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit Sensor type types B, C, E, J, K, L, N, R, S, T, U (default setting type K), mV measurement Measuring range depending on sensor type; preset value is type K, -100…+1370°C Measurement error/uncertainty Nominal voltage 24 V DC (-15%/+20%) Distributed clocks – Input filter 5 variations, configurable Sensor supply – Current consumption from U S 120 mA Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-
