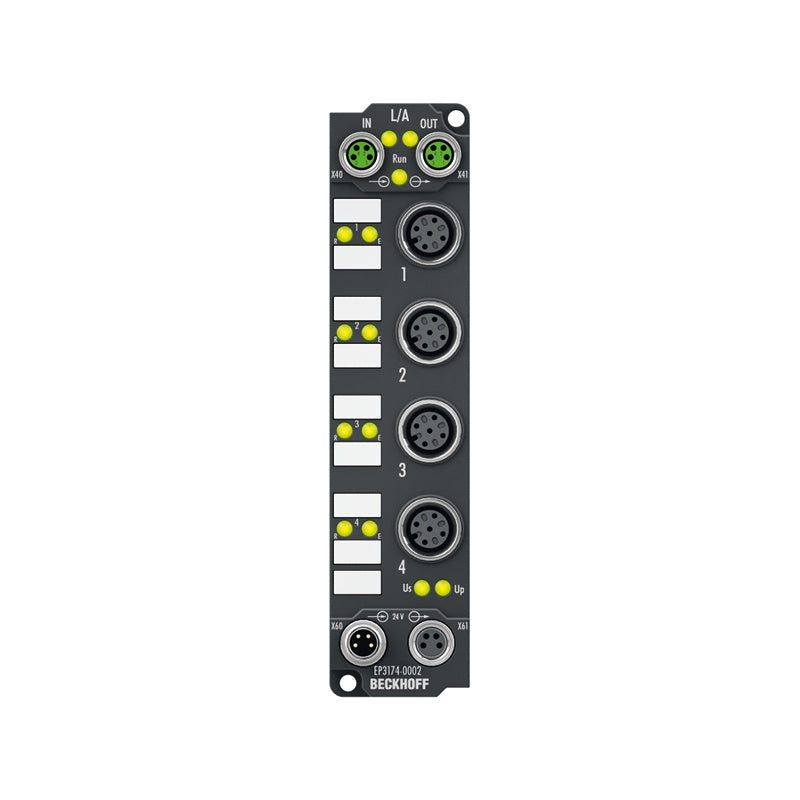

Beckhoff EP3174-0002 | Beckhoff Ethercat Box

EP3174-0002 | EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

The EP3174-0002 EtherCAT Box has four analog inputs which can be individually parameterized, so that they process signals either in the -10…+10 V or the...

Technical Specifications

EP3174-0002 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Number of inputs 4 (differential) Input connections M12 x 1, 5-pin, A-coded Conversion time ~ 100 µs Resolution 16 bit (incl. sign) Signal type -10/0…+10 V | 0/4…20 mA, parameterizable per channel Common mode voltage U CM max. 35 V Internal resistance > 200 kΩ | typ. 85 Ω + diode voltage Measurement error/uncertainty Input filter cut-off frequency 5 kHz Nominal voltage 24 V DC (-15%/+20%) Distributed clocks yes Input filter configurable Sensor supply from load supply voltage U P Current consumption from U S 120 mA Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Electrical isolation 500 V Special features current or voltage parameterizable Weight approx. 165 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibratio

Availability: regular delivery
