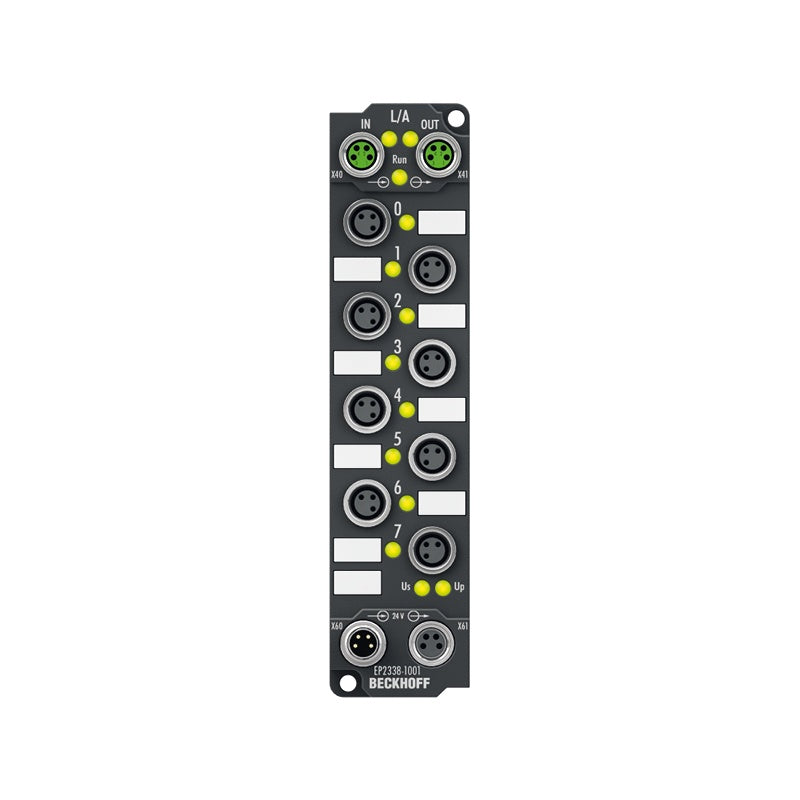

Beckhoff EP2338-1001 | Beckhoff Ethercat Box

EP2338-1001 | EtherCAT Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8

The EP2338-1001 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel...

Technical Specifications

EP2338-1001 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Specification EN 61131-2, type 1/3 Number of channels 8 digital inputs or outputs Input/output connections M8 x 1, 3-pin, a-coded Input filter 3 ms Signal voltage “0” -3…+5 V Signal voltage “1” 11…30 V, 6 mA input current (EN 61131-2, type 3) Sensor supply from load supply voltage, max. 0.5 A, short-circuit proof in total Load type ohmic, inductive, lamp load Rated load voltage 24 V DC (-15%/+20%) Max. output current 0.5 A per channel, individually short-circuit proof Switching times typ. T ON : 50 µs, typ. T OFF : 100 µs Short-circuit current typ. 1.5 A Distributed clocks – Auxiliary power current typ. 20 mA + load Current consumption from U S 120 mA Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Electrical isolation 500 V Wei

Availability: regular delivery
