Beckhoff EP2328-0002 | Beckhoff Ethercat Box

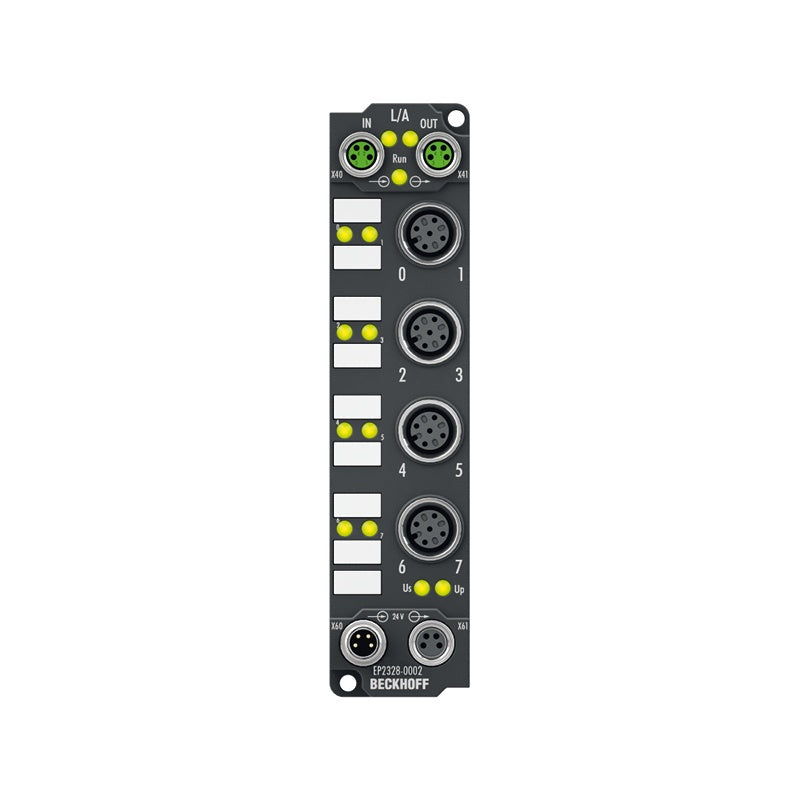

EP2328-0002 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12

The EP2328-0002 EtherCAT Box combines four digital inputs (two M12 sockets at the top) and four digital outputs (two M12 sockets at the bottom) in one ...

Technical Specifications

EP2328-0002 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Specification EN 61131-2, type 1/3 Number of channels 4 inputs + 4 outputs Input/output connections M12 x 1, 5-pin, a-coded Input filter 3 ms Signal voltage “0” -3…+5 V Signal voltage “1” 11…30 V, 6 mA input current (EN 61131-2, type 3) Sensor supply from control voltage, max. 0.5 A, short-circuit proof in total Load type ohmic, inductive, lamp load Rated load voltage 24 V DC (-15%/+20%) Max. output current 2 A per channel, individually short-circuit proof, ∑ 4 A Switching times typ. T ON : 200 µs, typ. T OFF : 200 µs Short-circuit current typ. 15 A Distributed clocks – Auxiliary power current typ. 20 mA Current consumption from U S typ. 120 mA Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Electrical isolation 500 V Weight app

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
