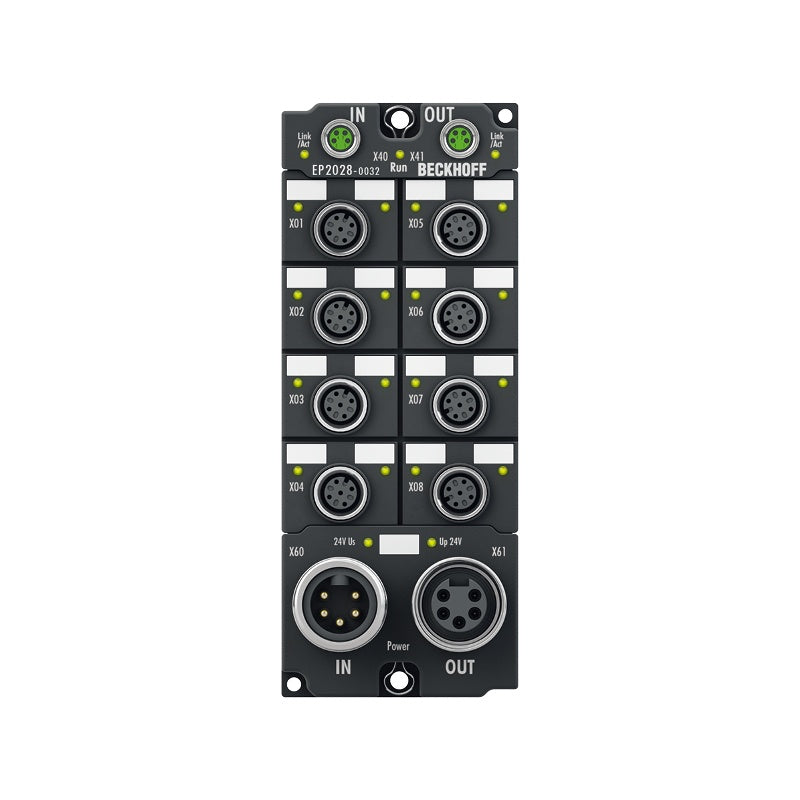

Beckhoff EP2028-0032 | Beckhoff Ethercat Box

EP2028-0032 | EtherCAT Box, 8-channel digital output, 24 V DC, 2.8 A, M12

The EP2028-0032 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the...

Technical Specifications

EP2028-0032 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Number of outputs 8 Output connections M12 x 1, 5-pin, a-coded Load type ohmic, inductive, lamp load Nominal output voltage 24 V DC (-15%/+20%) Max. output current 2.8 A per channel, individually short-circuit proof, ∑ 16 A Switching times typ. T ON : 200 µs, typ. T OFF : 200 µs Short-circuit current typ. 15 A Distributed clocks – Current consumption from U S typ. 130 mA Auxiliary power current typ. 20 mA + load Power supply connection feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin Electrical isolation 500 V Special features 1 output per M12 plug, ∑ 16 A Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP65/6

Availability: regular delivery
