Beckhoff EP2008-0001 | Beckhoff Ethercat Box

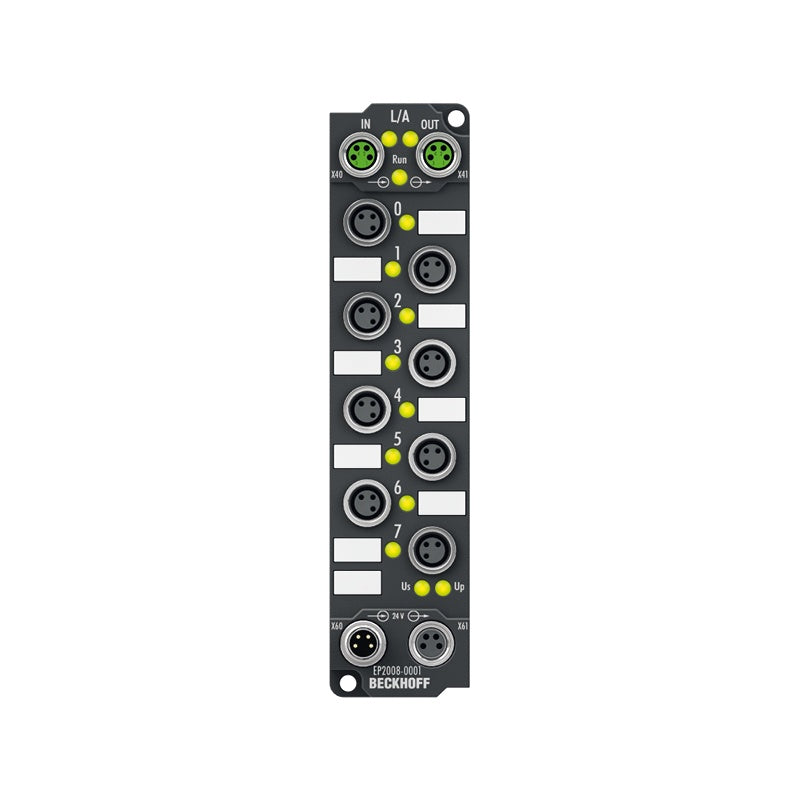

EP2008-0001 | EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M8

The EP2008-0001 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the...

Technical Specifications

EP2008-0001 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Number of outputs 8 Output connections M8 x 1, 3-pin, a-coded Load type ohmic, inductive, lamp load Nominal output voltage 24 V DC (-15%/+20%) Max. output current 0.5 A (short-circuit proof) per channel Switching times typ. T ON : 50 µs, typ. T OFF : 100 µs Short-circuit current typ. 1.5 A Distributed clocks – Current consumption from U S 120 mA Auxiliary power current typ. 20 mA + load Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Electrical isolation 500 V Weight approx. 165 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP65/66/67 (conforms to EN 605

Availability: regular delivery
