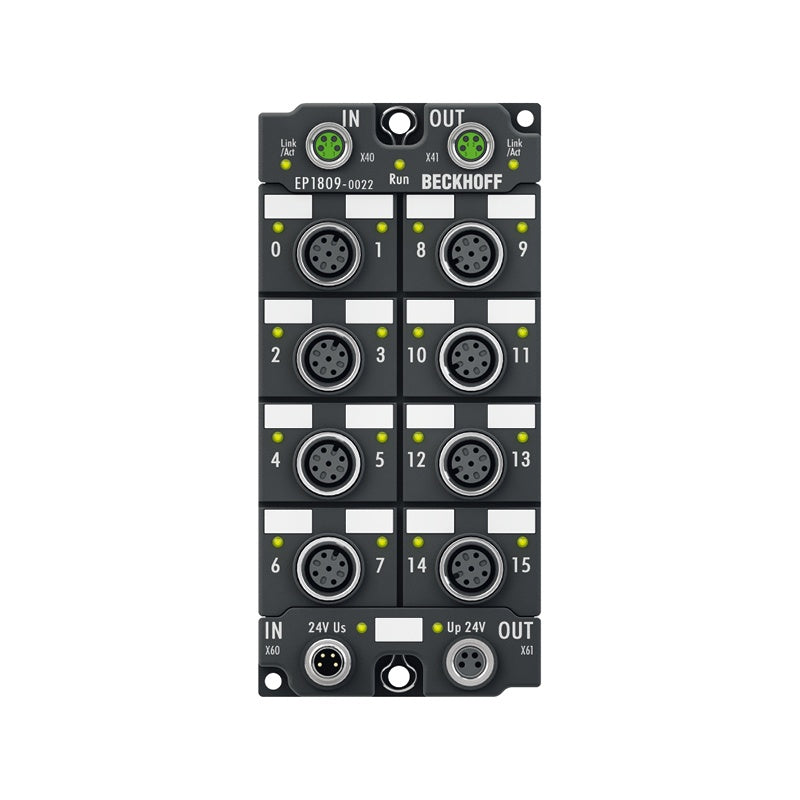

EP1809-0022 | EtherCAT Box, 16-channel digital input, 24 V DC, 3 ms, M12

The EP1809-0022 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated...

Technical Specifications

EP1809-0022 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Specification EN 61131-2, type 1/3 Number of inputs 16 Input connections M12 x 1, 5-pin, A-coded Nominal input voltage 24 V DC (-15%/+20%) Input filter 3 ms Signal voltage “0” -3…+5 V (EN 61131-2, type 3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA (EN 61131-2, type 3) Distributed clocks – Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded Sensor supply from control voltage, max. 0.5 A, short-circuit proof in total Current consumption from U S typ. 130 mA Electrical isolation 500 V Weight approx. 250 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/i
