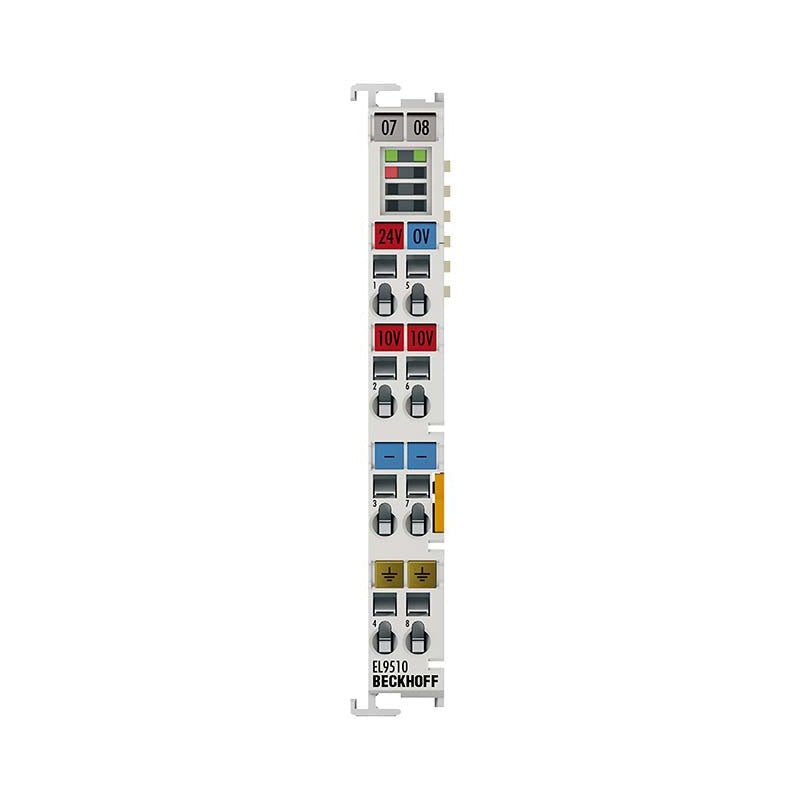

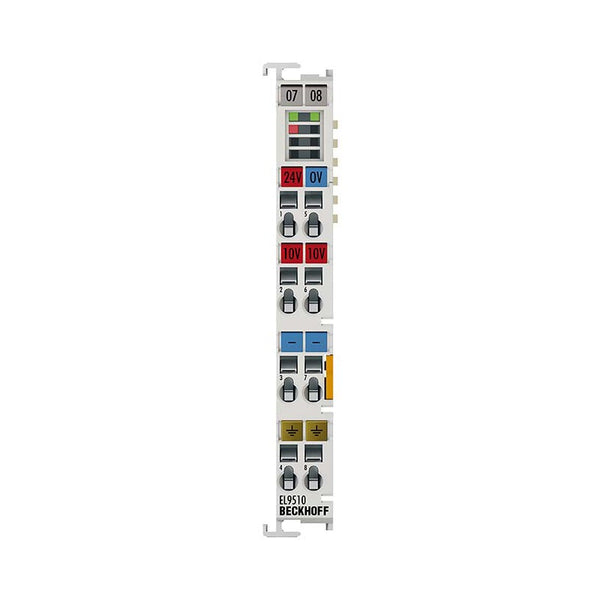

EL9510 | EtherCAT Terminal, power supply, 10 V DC, 0.5 A

The EL9510 power supply terminal takes the input voltage (24 V DC) and uses it to generate an output voltage of 10 V DC at 0.5 A, which can be tapped at...

Technical Specifications

EL9510 Technology power supply terminal with diagnostics and overcurrent LED Short-circuit proof yes Input voltage 24 V DC (-15%/+20%) Output voltage 10 V DC ±1% Output current 0.5 A Current consumption E-bus 90 mA Electrical isolation 500 V (E-bus/field potential) Residual ripple Diagnostics in the process image yes Special features stabilized output voltage Weight approx. 65 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Pluggable wiring level for all ESxxxx terminals Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compac

Availability: regular delivery
