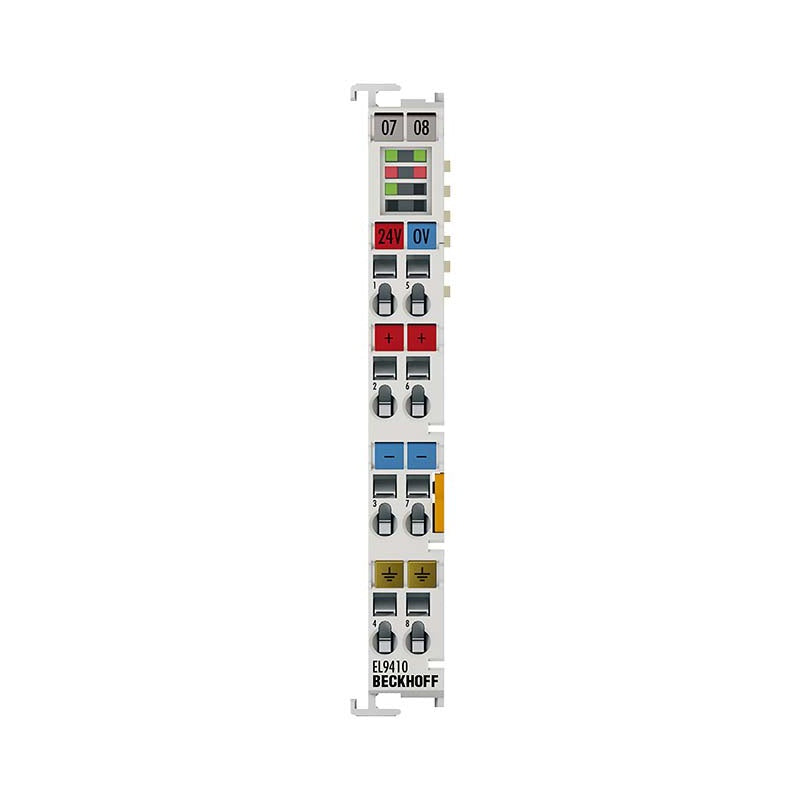

EL9410 | EtherCAT Terminal, power supply for E-bus, 24 V DC, 2 A, with diagnostics

The EL9410 power supply terminal is utilized to refresh the E-bus. Data is exchanged between the coupler and the EtherCAT Terminal over the E-bus. Each terminal...

Technical Specifications

EL9410 Technology power supply terminal Short-circuit proof yes Input voltage 24 V DC (-15%/+20%) Input current typ. 70 mA + (E-bus/4) Output voltage 5 V for E-bus supply Output current 2 A Current consumption E-bus – Electrical isolation 500 V (E-bus/field potential) Power contacts max. 24 V DC/max. 10 A Diagnostics in the process image yes Special features standard EL supply Weight approx. 65 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Pluggable wiring level for all ESxxxx terminals Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-

Availability: regular delivery
