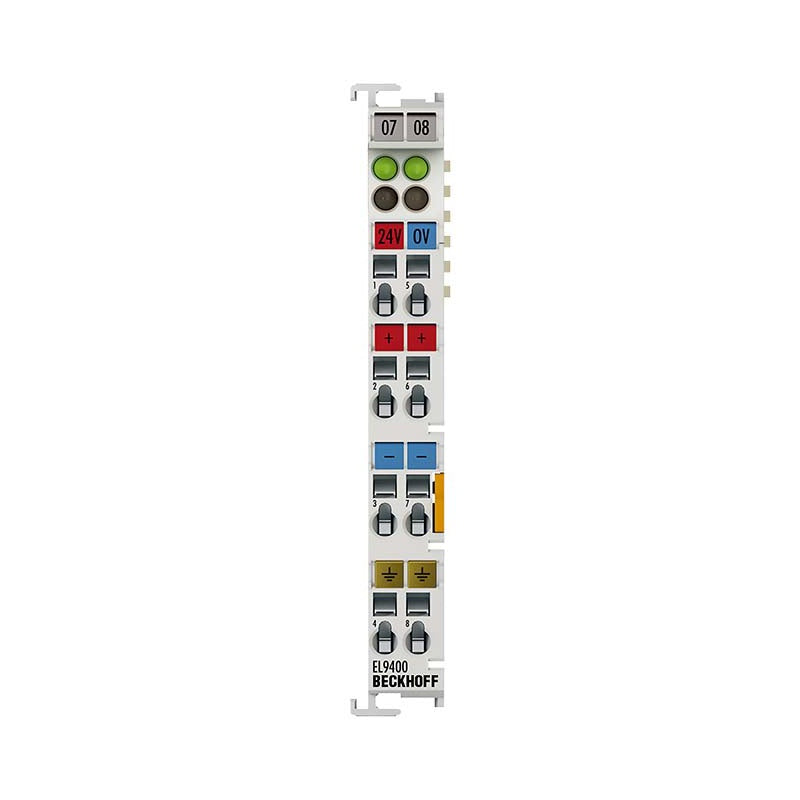

EL9400 | EtherCAT Terminal, power supply for E-bus, 24 V DC, 2 A

The EL9400 power supply terminal is utilized to refresh the E-bus via which the data exchange between EtherCAT couplers and Terminals takes place. Each EtherCAT...

Technical Specifications

EL9400 Technology power supply terminal Input voltage 24 V DC (-15%/+20%) Input current typ. 70 mA + (E-bus/4) Output voltage 5 V for E-bus supply Output current 2 A Electrical isolation 500 V (E-bus/field potential) Insulation voltage input/output – Power contacts max. 24 V DC/max. 10 A Weight approx. 65 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Pluggable wiring level for all ESxxxx terminals Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring l

Availability: regular delivery (not recommended for new projects) | recommended alternative: EL9410
