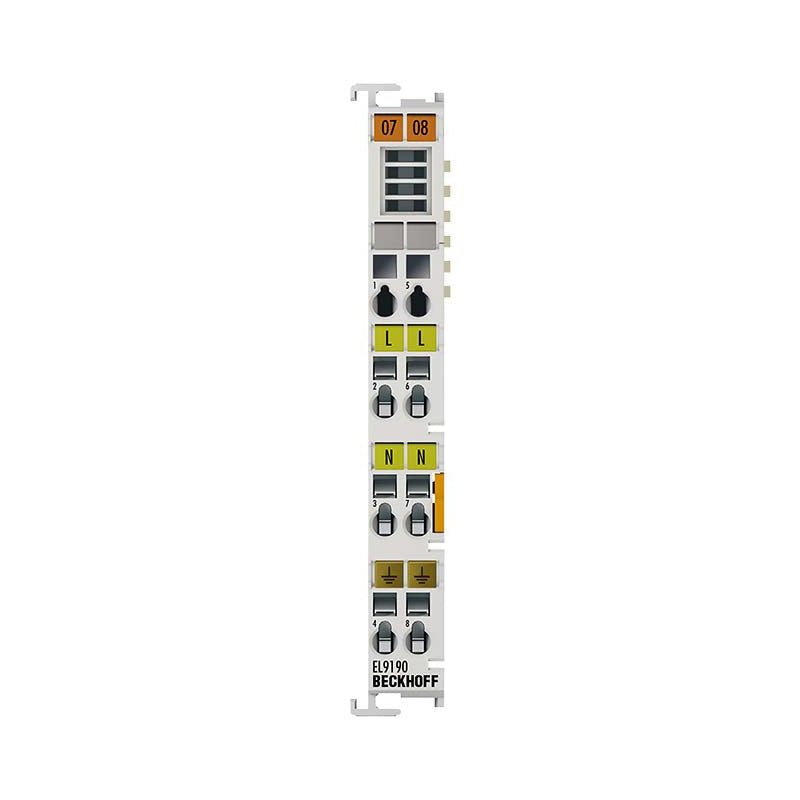

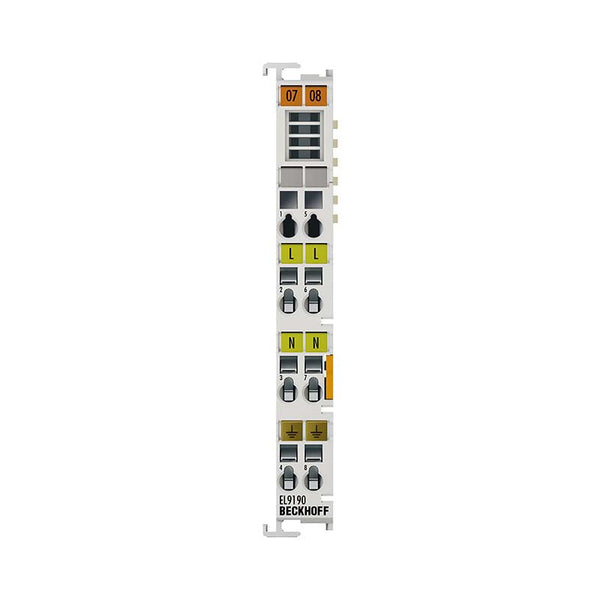

Beckhoff EL9190 | Beckhoff Ethercat Terminals

EL9190 | EtherCAT Terminal, potential supply, 0…230 V AC/DC, 10 A

The EL9190 potential feed terminal enables the setup of different potential groups with a voltage of up to 230 V AC/DC. The supply voltage is taken up ...

Technical Specifications

EL9190 Technology potential supply terminal Current load ≤ 10 A Nominal voltage arbitrary up to 230 V AC/DC Electrical isolation 500 V (E-bus/field potential) Bit width in the process image 0 Housing width 12 mm Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, UL Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxxx series Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver Connection cross-section s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…

Availability: regular delivery
