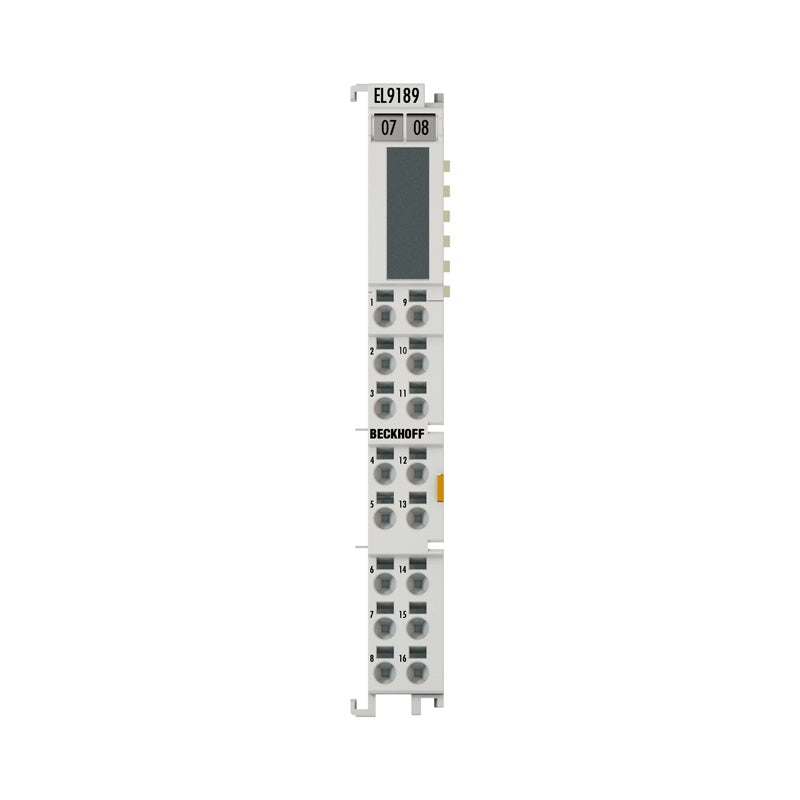

EL9189 | EtherCAT Terminal, potential distribution, 16 x 0 V DC

The EL9189 potential distribution terminal provides 16 terminal points with the 0 V potential at the front on the terminal contacts. The 0 V power contact...

Technical Specifications

EL9189 Technology potential distribution terminal Number of outputs e.g.: 16 x 0 V contact Current load ≤ 10 A Nominal voltage ≤ 60 V Electrical isolation 500 V (E-bus/field potential) Connection facility to additional power contact 16 Bit width in the process image 0 Housing width 12 mm Side by side mounting on EtherCAT Terminals with power contact yes, left without PE Special features direct plug-in technology Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-16pin Design form HD (High Density) housing with signal LEDs Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZx

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
