Beckhoff EL9186 | Beckhoff Ethercat Terminals

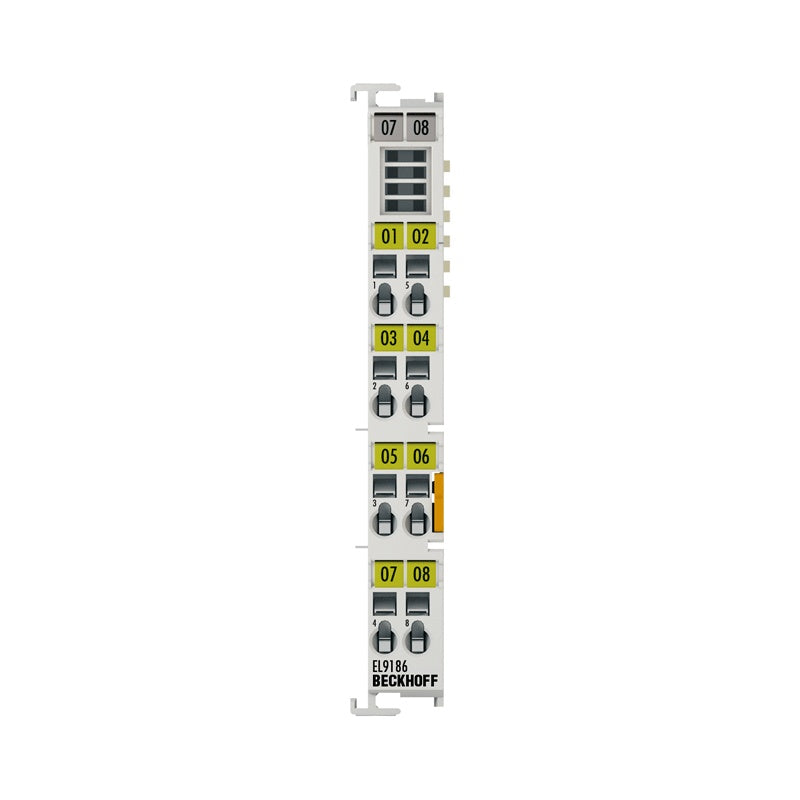

EL9186 | EtherCAT Terminal, potential distribution, 8 x 24 V DC

The EL9186 potential distribution terminal provides eight terminal points with the 24 V potential at the front on the terminal contacts. The 24 V power...

Technical Specifications

EL9186 Technology potential distribution terminal Number of outputs e.g.: 8 x 24 V contact Current load ≤ 10 A Nominal voltage ≤ 60 V DC / ≤ 30 V AC Electrical isolation 500 V (E-bus/field potential) Connection facility to additional power contact 8 Bit width in the process image 0 Housing width 12 mm Side by side mounting on EtherCAT Terminals with power contact yes, left without PE Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounti

Availability: regular delivery
