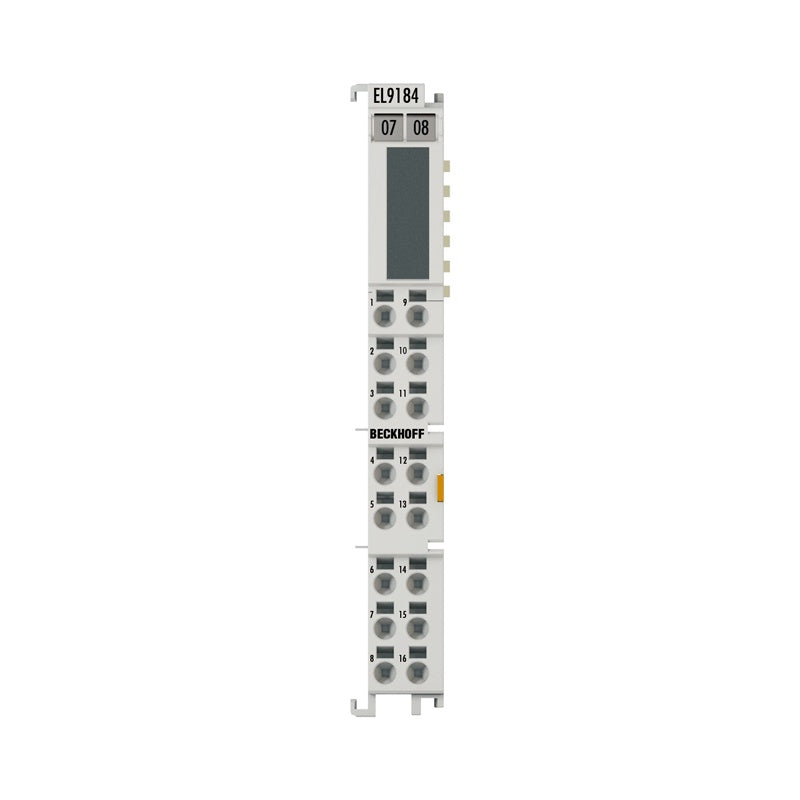

EL9184 | EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC

The EL9184 potential distribution terminal provides the supply voltage via the front-side terminal contacts. 24 V and 0 V can each be tapped 8x from the...

Technical Specifications

EL9184 Technology potential distribution terminal Number of outputs e.g.: 8 x 24 V contact, 8 x 0 V contact Current load ≤ 10 A Nominal voltage ≤ 60 V Electrical isolation 500 V (E-bus/field potential) Connection facility to additional power contact 8 Bit width in the process image 0 Housing width 12 mm Side by side mounting on EtherCAT Terminals with power contact yes, left without PE Special features direct plug-in technology Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-16pin Design form HD (High Density) housing with signal LEDs Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking lab

Availability: regular delivery
