Beckhoff EL9110 | Beckhoff Ethercat Terminals

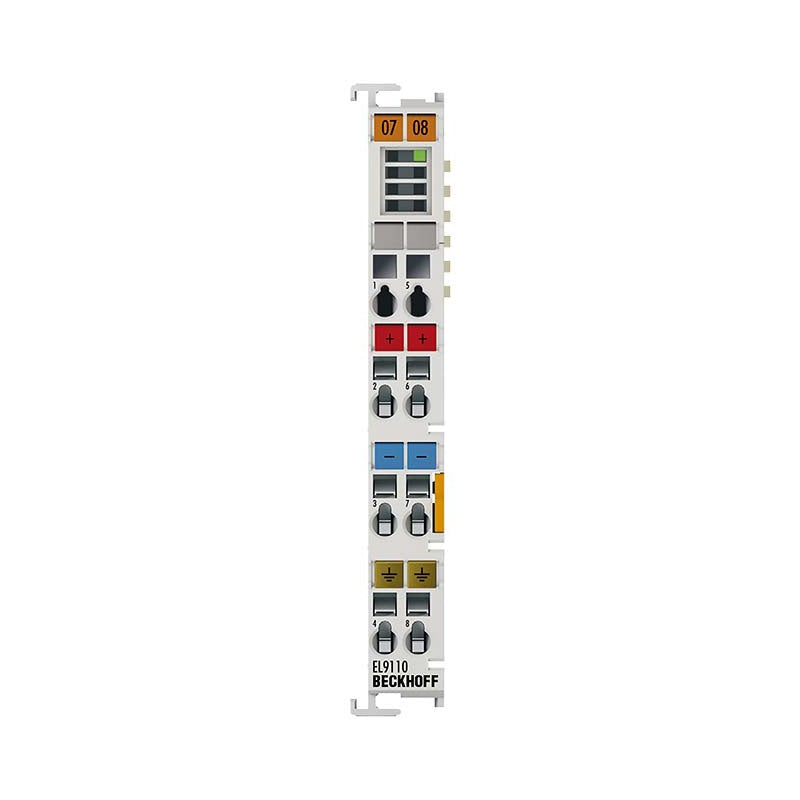

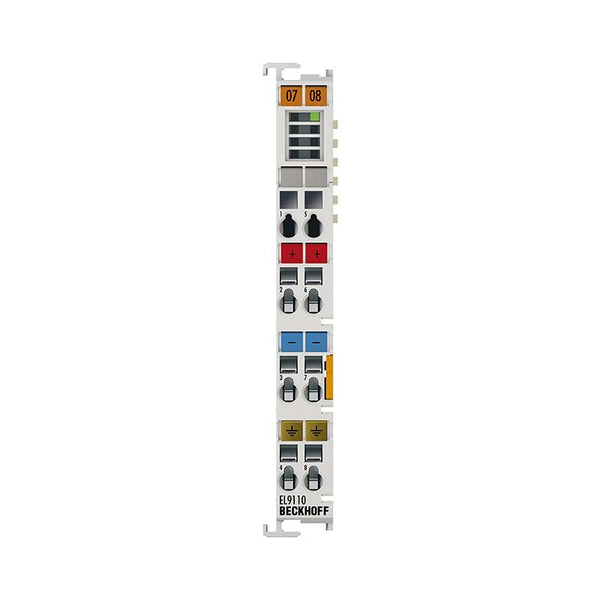

EL9110 | EtherCAT Terminal, potential supply, 24 V DC, 10 A, with diagnostics

The EL9110 potential feed terminal with diagnostics enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage...

Technical Specifications

EL9110 Technology potential supply terminal with diagnostics Current load ≤ 10 A Power LED green Current consumption E-bus typ. 90 mA Nominal voltage 24 V DC Electrical isolation 500 V (E-bus/field potential) Diagnostics in the process image yes Reported to E-bus yes Bit width in the process image 2 Housing width 12 mm Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of

Availability: regular delivery
