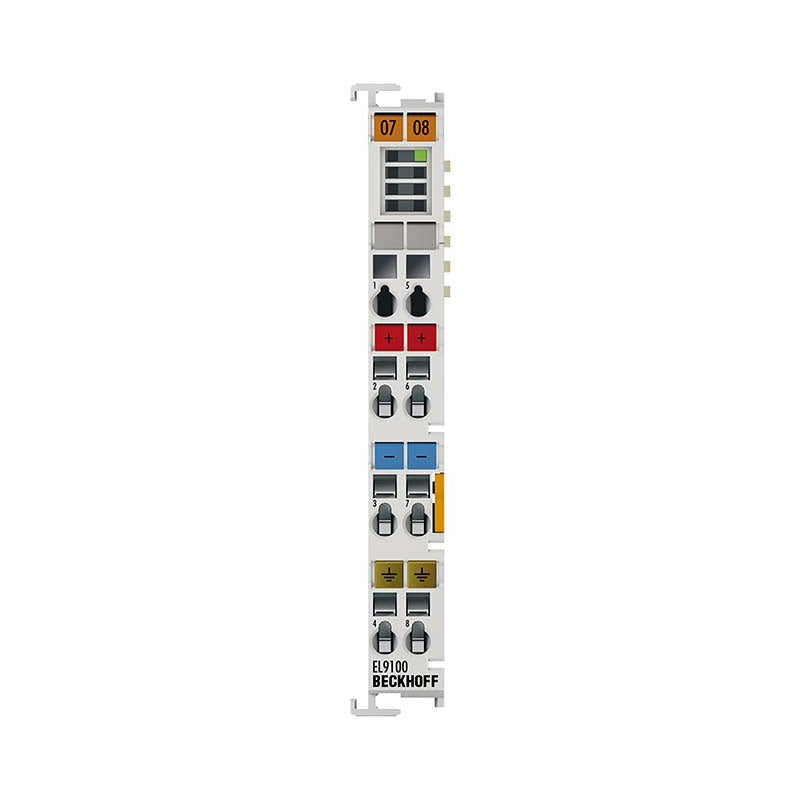

EL9100 | EtherCAT Terminal, potential supply, 24 V DC, 10 A

The EL9100 potential feed terminal enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage is taken up via...

Technical Specifications

EL9100 Technology potential supply terminal Current load ≤ 10 A Power LED green Renewed infeed yes Nominal voltage 24 V DC Electrical isolation 500 V (E-bus/field potential) Connection facility to additional power contact 1 Bit width in the process image 0 Housing width 12 mm Side by side mounting on EtherCAT Terminals with power contact yes Side by side mounting on EtherCAT Terminals without power contact yes Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin ES-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 wi

Availability: regular delivery
