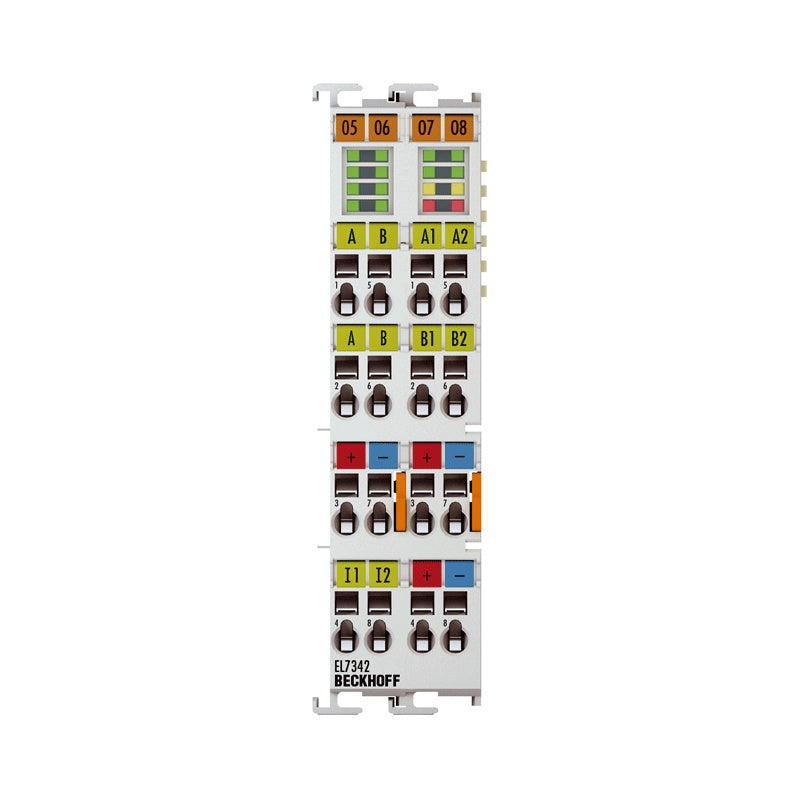

Beckhoff EL7342-0000 | Beckhoff Ethercat Terminals

EL7342 | EtherCAT Terminal, 2-channel motion interface, DC motor, 48 V DC, 3.5 A

The EL7342 EtherCAT Terminal enables direct operation of two DC motors. It is galvanically isolated from the E-bus. The speed or position is specified ...

Technical Specifications

EL7342 Technology compact drive technology Connection technology direct motor connection Number of inputs 1 x end position, 1 x encoder per channel Load type DC brush motor, inductive Number of channels 2 Number of outputs 1 x DC motor per channel Supply voltage electronics 24 V DC (via power contacts) Supply voltage power 8…48 V DC (external) Output current max. 3.5 A per channel Performance increase yes, through ZB8610 fan cartridge Output current with ZB8610 max. 6.5 A per channel PWM clock frequency 32 kHz with 180° phase shift each Duty cycle 0…100% (voltage-controlled) Resolution max. 10 bit current, 16 bit speed Encoder input signal 5…24 V DC, typ. 5 mA, single-ended Input frequency max. 400,000 increments/s (with 4-fold evaluation) Current consumption power contacts typ. 70 mA Current consumption E-bus typ. 140 mA Distributed clocks yes Special features travel distance control, e

Availability: regular delivery
